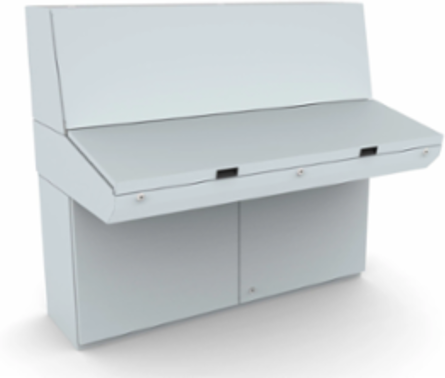

nVent Hoffman MPC123R5 Base Console 700 x 1200 x 500mm Mild Steel IP55
- MPN: MPC123R5
- UPC: 783510510664
- PPN: HOF-MPC123R5
CAD
$3152.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Console system MPC is IP 55/56 protected. It includes three interchangeable sections, top, desk and bottom This Console System, MPC, MPC123R5 item measures 700x1200x500mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Material: Body and door: 1.5 mm mild steel. Rear panel: 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
- Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Top section and desk panels held open by self engage/self release mechanical panel stays. Concealed hinges, allowing 90° opening on the desk. Double door on 1200 and 1600 mm wide base units.
- Mounting plate: Standard mounting plate in base unit. Fixed by fixing brackets on C rail, top and bottom, for depth adjustment. Optional in desk and top section units.
- Lock: Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.
- Cable access: Bottom opening in base unit for cable access. Bottom plates for cable glanding supplied as standard.
- Earthing: M8 threaded studs on bodies, doors and rear panels.
- Finish: RAL 7035 structured powder coating.
- Protection: Single door: IP 66, TYPE 4, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
- Delivery: The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base openings can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.
- Mounting plate: Standard mounting plate in base unit; fixed by fixing brackets on C rail, top and bottom, for depth adjustment; optional in desk and top section unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,200
- Mounting Plate Included
- Yes
- Type
- Base Unit
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Mounting Plate Height
- 590
- Protection Rating
- NEMA Type 12
Height (H)700
Depth (D)500
Max Mounting Depth470.5
MaterialMild Steel
ColorLight Gray
Thickness (T)1.5
Mounting Plate Width1,099
Weight152.1
