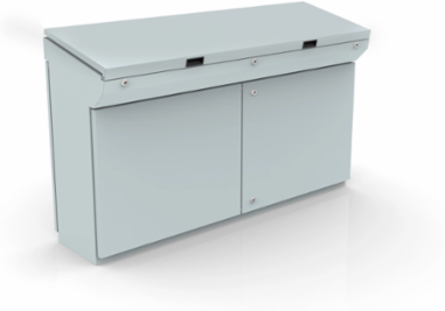

nVent Hoffman MPG10R5 Compact Enclosure Console 985x1000x400mm, Mild Steel, IP66, Powder Coated
- MPN: MPG10R5
- UPC: 783510512484
- PPN: HOF-MPG10R5
CAD
$3199.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The compact console allows for easy installation and access to HMI-equipment. It increases the mounting space available. This One-Piece Consoles In Mild Steel, MPG, MPG10R5 item measures 985x1000x400mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Material: Body and door: 1.5 mm mild steel. Rear panel. 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
- Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges on top edge allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 and 1600 mm wide base units.
- Mounting plate: Standard mounting plate in base unit.
- Lock: Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks.
- Cable inlet: Bottom opening for cable access. Bottom plates for cable glanding supplied as standard.
- Earthing: M8 threaded studs on body, door, top panel and rear panel.
- Finish: RAL 7035 structured powder coating.
- Protection: Single door: IP 66, TYPE 4, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
- Delivery: Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Panel Size
- 790 x 899
- Material
- Mild Steel
- Color
- Light Gray
- Body Thickness
- 1.5
- Protection Rating
- IP66
Height (H)985
Depth (D)400
Max Mounting Depth333
FinishPowder Coated
Color CodeRAL 7035
Door Thickness1.5
Weight171.99
