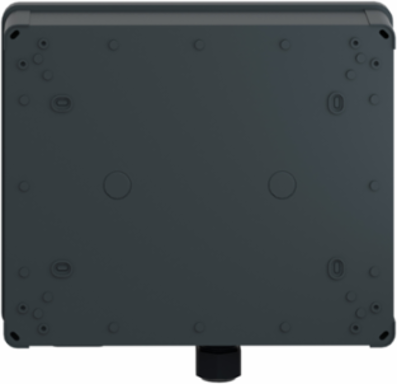

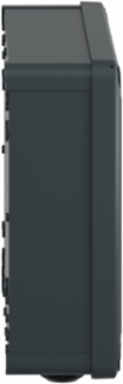

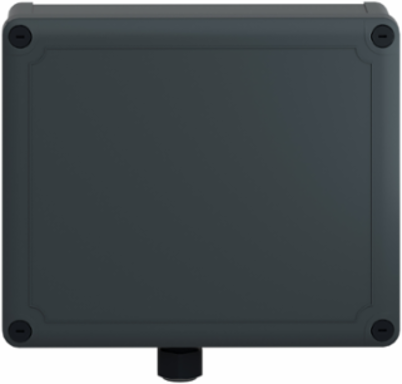

Schneider Electric ZARB12W Harmony eXLhoist Base Station - 12 Relay Outputs, IP65, 24-240V AC/DC
- MPN: ZARB12W
- PPN: SCH-ZARB12W
- UNSPSC: 39122216
CAD
$1284.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

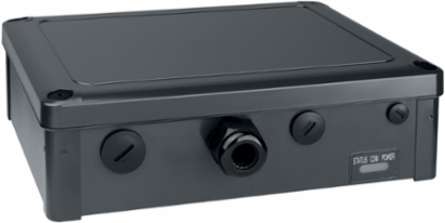

This Harmony eXLhoist / XAR black base station (receiver) has 12 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8L. It has 12 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Features
- Designed for intuitive operation
- Robust performance and safety compliance
- One hand operation
- Operator protection
- High availability
- Unrestricted worldwide use
- For industrial cranes and construction cranes applications
- IP65 and NEMA 4 degree of protection
- Wide range of operating temperature from -25°C to 70°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Depth | 100 mm |
| Weight | 1600 g |
|---|
Communications & Management Attributes
| Communication Network Type | wireless bluetooth low energy |
|---|
Complementary Attributes
| Maximum Sensing Distance | 100 m in free field |
|---|---|
| Maximum Switching Voltage | 240 V AC/DC + 20 %) |
| Maximum Switching Current | 6.8 mA |
|---|---|
| Us Rated Supply Voltage | 24...240 V AC/DC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electromagnetic Compatibility | resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3 |
| Radio Agreement | ARIB, ICASA, RSS, SRRC, FCC, ANATEL |
| Carbon Footprint Of The Distribution Phase A4 | 0.2092262467, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.4269606299, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 1 086 kg CO2 eq., 1086.2003527494 |
| Local Publishable Date | 2026-02-17 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1404028EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1415 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Cable Entry | cable gland |
| Electrical Durability | 100000 cycles |
| Material | PC (polycarbonate) |
| Number Of Channels | 40 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | internal antenna |
| Relay Type | motion relay outputs 9 NOauxiliary relay outputs 3 NO |
| Service Life | 10 year(s) |
| Software Version | v5.9.4 |
| Switching Capacity In Va | 5 VA DC26 VA AC |
| Transmission Frequency | 2.4 GHz |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 280 mm |
| Customs Code | 8537109170 |
| Functional Unit Description | The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine. |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 2102.4 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Product Specific Application | hoisting applications, material handling |
| Certificate Agency | KC, UL, C-tick, CE, EAC, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.0832335958 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 53 kg CO2 eq., 53.3669291339 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Product Kit Identifier | N |
| Device Short Name | ZARB |
| Fixing Mode | 4 holes |
| Mechanical Durability | 1000000 cycles |
| Number Of Relays | 12 |
| Product Or Component Type | base station |
| Range Of Product | Harmony eXLhoist |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 141 kg CO2 eq. |
| Vibration Resistance | 0.075 mm 10-55 Hz) |
| Database Version | 2022-01 |
| Height Nominal | 305 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 1141.2867023557 |
| Environmental Disclosure | ENVPEP1404028EN |
| Ip Degree Of Protection | IP65 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1404028EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1404028EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 4 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-97 % |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | base station |
|---|---|
| Range Of Product | Harmony eXLhoist |
| Provided Equipment | internal antenna |
|---|
ETIM
| ETIM 8 | EC002024 |
|---|---|
| ETIM 10 | EC002024 |
| ETIM 9 | EC002024 |
|---|
Output Attributes
| Nominal Output Current | 0.54 A 48 V AC IEC 60947-5-1 |
|---|
| Safety Outputs | 2 NC relay outputs |
|---|
