Schneider Electric XVUC21B Harmony XVU Modular Tower Light Base Unit, 60mm, 24V AC/DC, IP65

MPN: XVUC21B
PPN: SCH-XVUC21B

$89.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

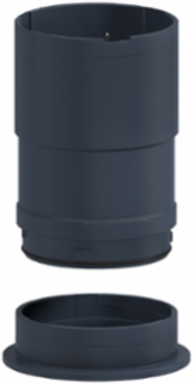

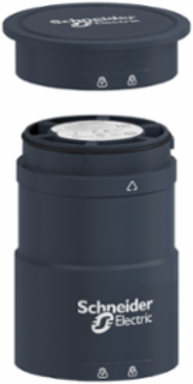

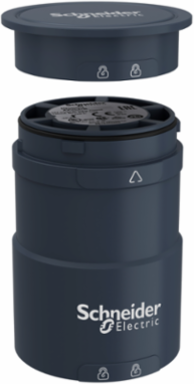

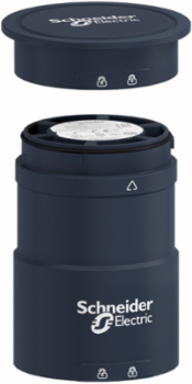

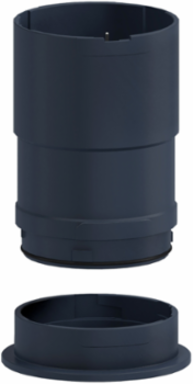

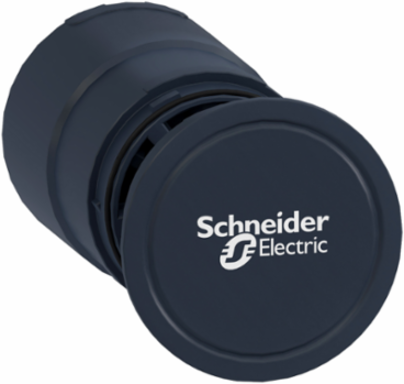

This base unit with top cover is designed to be fitted with indicator bank to create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It allows clear display of the status of your machines. It complies with CSA, UL, RoHS, CE standards. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Features

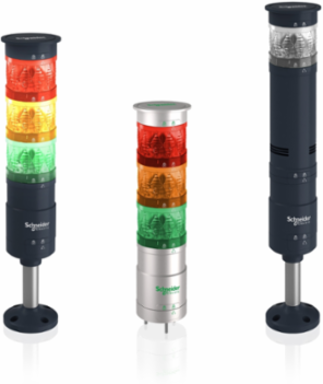

The Schneider Electric XVUC21B is the high-performance base unit for the Harmony XVU 60mm modular signal tower series. It serves as the mechanical and electrical mounting point for up to five light or sound modules, allowing Canadian facilities to create custom, multi-state status indicators for industrial machinery and assembly lines.
Designed to run on a standard 24V AC/DC supply, this base is the preferred choice for modern automation systems. By utilizing a low-voltage control signal, it minimizes arc-flash risks and ensures compatibility with standard PLC outputs and safety controllers used in Canadian manufacturing and food processing plants.
The "B" in the part number denotes the professional black finish. This modern, low-profile design (60mm diameter) integrates seamlessly with contemporary machine aesthetics, providing a high-end look while ensuring the status lights remain the focal point for operators on the floor.

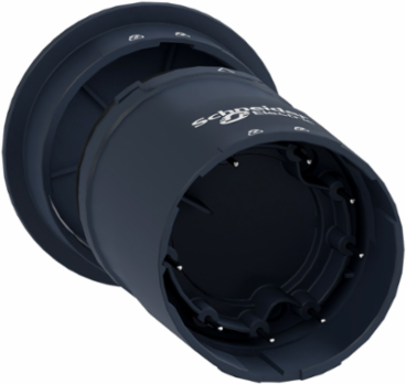

The XVUC21B features a clever internal terminal block that allows for fast, organized wiring. The wires are secured within the base, and modules are then simply "stacked and twisted" into place. This tool-free assembly of the upper tiers significantly reduces maintenance time when changing light sequences or adding new functions.
When fully assembled with its matching modules and top cover, the XVUC21B assembly achieves an IP65 and NEMA 4X rating. This ensures the tower remains watertight and dust-tight, making it ideal for the wash-down environments of Canadian beverage plants or the dusty conditions of woodworking and textile facilities.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Singapore, United States

Physical Attributes

Housing Color	black

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Kit Composition	base unit, cover
Certificate Agency	CE, UL, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0958617729126422
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.7 kg CO2 eq., 0.7230092294483794
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Beacon Or Indicator Bank Unit Type	base unit
Current Consumption	<= 400 mA<= 400 mA
Mounting Diameter	60 mm
Product Or Component Type	modular tower light
Returnability	Yes
Sustainable Packaging	Yes
Vibration Resistance	2 gn
Pep Code	ENVPEP2308032EN
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Length Total	77 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531909001

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Material	PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94, PC (polycarbonate) V-0 UL 94
Carbon Footprint Of The Distribution Phase [A4]	0.014383987980253274, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.11376904915217857, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308032EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Assembly Style	customer assembly, up to 5 units
Component Name	XVU
Fixing Mode	direct or tube fixing
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XVU
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.9 kg CO2 eq.
Housing Color	black
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	16
[Us] Rated Supply Voltage	24 V AC/DC - 15...10 %
Package Weight(Lbs)	284.0 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-50 °C, -25-50 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.9470240394934535
Environmental Disclosure	ENVPEP2308032EN
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308032EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
