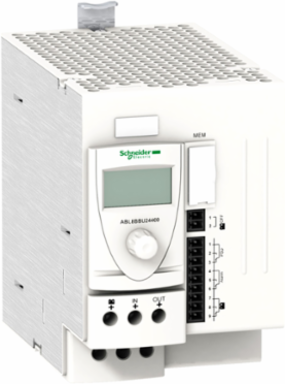

Schneider Electric ABL8BBU24400 Phaseo Battery Control Module, 24-28.8V DC, 40A Output, DIN Rail Mounted
- MPN: ABL8BBU24400
- PPN: SCH-ABL8BBU24400
- UNSPSC: 39121004
CAD
$914.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0,700kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Control backup battery charging and backup supply to ensure the longest battery life-time
- Reliable and fast switching between network/battery supply avoiding disturbances on critical control power supply lines
- Provides a continuity of service when microbreaks and power outages occur
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Philippines |
|---|
Complementary Attributes
| Maximum Output Current | 40 A |
|---|
| Maximum Power Dissipation In W | 12 W |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Current Consumption | <= 40.6 A, 0.6 A on load0.1 mA no load, <= 40.6 A |
| Environmental Characteristic | EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2safety conforming to IEC 60950-1, safety conforming to EN/IEC 61204-3 |
| Holding Current | 35 A, 40 A, 25 A, 30 A |
| Local Signalling | 1 C/O relay for alarm status, 1 C/O relay for battery status, 1 C/O relay for power supply statusLCD screen for module status |
| Connections Terminals | for diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG, for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1212010EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Compatibility Code | ABL8B |
| Marking | CE |
| Overvoltage Category | class II conforming to VDE 0106-1 |
| Product Or Component Type | battery control module |
| Returnability | No |
| Vibration Resistance | 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-23.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Dielectric Strength | 500 V between input and ground, 500 V between output and ground |
| Fixing Mode | by clips 35 mm symmetrical DIN rail horizontal, by clips 35 mm symmetrical DIN rail vertical |
| Holding Time | 7 mn, 10 s, 15 mn, 2 mn, 0., 4 mn, 9 mn, 5 mn, 1 s, 5 s, 6 mn, 30 s, 1 mn, 3 mn, 0., 8 mn, 10 mn, 2 s, 20 mn |
| Name Of Test | electrostatic discharges IEC 61000-4-2emission IEC 61000-6-3, induced electromagnetic field IEC 61000-4-6 level 3radiated electromagnetic field IEC 61000-4-3 level 3rapid transient IEC 61000-4-4 level 3, surge IEC 61000-4-5 level 2, conducted/radiated emissions EN 55022 Class B, 20 % |
| Certificate Agency | RCM, EAC |
| Local Publishable Date | 2026-02-24 |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Holding Solution | use of battery modules |
| Mtbf Reliability | 707945 H at 24 V DC with UTE C80-810 calculation method |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Phaseo |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Customs Code | 8537109170 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Relative Humidity | 0-90 % during operation, 0-95 % during storage |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1212010EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1212010EN |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212010EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | battery control module |
|---|
| Range Of Product | Phaseo |
|---|
ETIM
| ETIM 8 | EC000382 |
|---|---|
| ETIM 10 | EC000382 |
| ETIM 9 | EC000382 |
|---|
Output Attributes
| Output Protection Type | against overload, protection technology: 1.5 x Inagainst short-circuits, protection technology: battery-backed mode, automatic reset, against short-circuits, protection technology: power-supplied mode |
|---|---|
| Number Of Output Channels | 1 |
| Output Voltage | (Ubattery-0.5) V battery mode DC, (Ubattery-0.5) V battery mode DC, (Ubattery-0.5) V battery mode DC, (Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC(Ubattery-0.5) V battery mode DC, (Ubattery-0.5) V battery mode DC, (Ubattery-0.5) V battery mode DC, (Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 24...28.8 V DC |
|---|
| Input Voltage Limits | 22...30 V |
|---|
