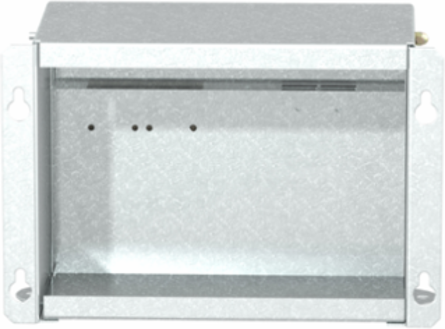

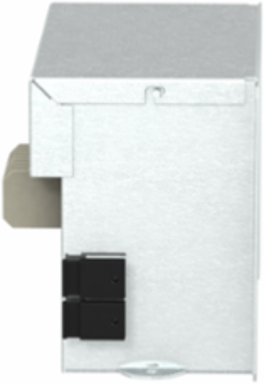

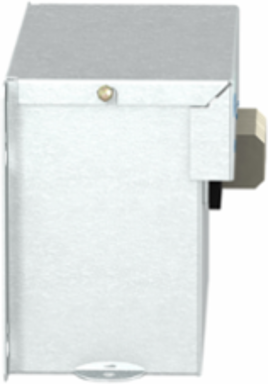

Telemecanique Sensors ABL8BPK24A07 Backup Battery Module, 24V DC, 40A, 7Ah, for Industrial Use
- MPN: ABL8BPK24A07
- PPN: SCH-ABL8BPK24A07
CAD
$298.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ABL8 backup battery (storage capacity 7 ampere hour) supplies direct current voltage. It has a rated output current of 40A at 24V DC. This backup battery (storage capacity 7Ah) is designed to provide continuous auxiliary power during significant and long network power shortages. It provides long term backup power for power blackouts lasting more than a few seconds. It weighs 6,030kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by GOST, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Phaseo |
|---|---|
| Battery Capacity | 7 Ah |
| Product Or Component Type | battery module |
|---|
Complementary
| Output Coupling | parallel |
|---|---|
| Load Current | 0.7 A |
| Input Voltage Limits | 21...29 V |
| Charging Time | 72 h |
| Self-Discharge Rate | 9 %, 3 months || 3 %, 1 month || 15 %, 6 months |
|---|---|
| Marking | CE |
| Net Weight | 6.5 kg |
| Operating Altitude | 2000 m |
Environment
| Product Certifications | CTP || UL |
|---|---|
| Ambient Air Temperature For Storage | -20-50 °C |
| Ambient Air Temperature For Operation | 0-40 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP1410021EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1410021EN |
| Pvc Free | Yes |
|---|---|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
