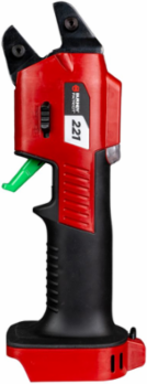

Burndy PAT221B0000 PATRIOT Battery Actuated Crimper 18VDC - 10.6 Inch x 2.8 Inch x 4.2 Inch

MPN: PAT221B0000
UPC: 621945665538
PPN: BUR-50124032
UNSPSC: 27112750

$2829.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PATRIOT® Series, PAT221 Small Terminal Battery Crimper, No Case, No Dies, No Batteries, No Charger, Makita Power

Features

Tool Only, no dies included
Scissor action head design
One-second cycle time with auto retract and calibration
Interchangeable crimping dies and wheels
Connector hold feature for easy wire insertion
LED Worklight
Red LED to indicate an incomplete crimp
Safety Trigger Lock and Emergency Release

Specifications

Key Specifications

Country of Origin	United States
Container Type	Hard Case
Dimensions	10.6 in x 2.8 in x 4.2 in
Length	10.6 in
Power Source	120V-AC Charger
Trade Name	PATRIOT®
Battery	No Batteries Included (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Type	Crimper
Weight	2.6 lb.
Battery Type	No Batteries Included (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Freight Class Code	16027000
Image Actual Or Representative	A
Recharge Time	0.5 hr
Series	PATRIOT® Series
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00621945665538

Application - For Use On	Copper Terminals, Splices
Die Type	Interchangeable
Height	4.2 in
Operating Voltage	18 VDC
Product Type	Tooling
Application	Crimping
Size	10.6 in x 2.8 in x 4.2 in
Warranty	3 year limited warranty, 3 year warranty on batteries and charger
Width	2.8 in
Class Code	B82
Harmonization Code	8467290090
Sub Class Code	B82B82B
Crimping Ranges	Copper: #22 AWG - #1 AWG terminals and splices
Tool Type	Battery Actuated Crimper
BOX SIZE	(in)
NAICS Code	3339911151
