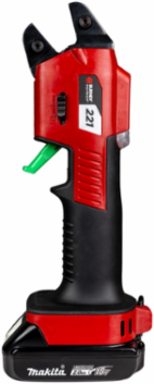

Burndy PAT221B02A2 Battery Crimper 2Ah Li-ion, 10.6 Inch x 2.8 Inch x 4.2 Inch, AC, Hard Case
- MPN: PAT221B02A2
- UPC: 621945666214
- PPN: BUR-50124037
- UNSPSC: 27112750
CAD
$3637.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

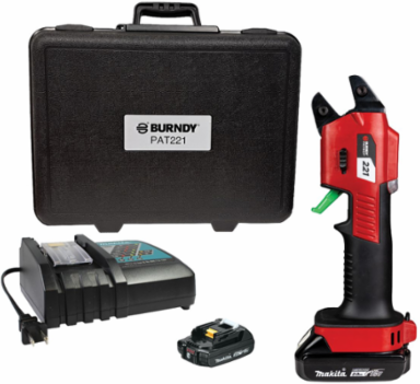

PATRIOT® Series, PAT221 Small Terminal Battery Crimper, Hard Case, No Dies, Makita (2) 2.0Ah 18V Li-ion Batteries, 120V-AC Charger
Features
- Tool and kit accessories only, no dies included
- Scissor action head design
- One-second cycle time with auto retract and calibration
- Interchangeable crimping dies and wheels
- Connector hold feature for easy wire insertion
- LED Worklight
- Red LED to indicate an incomplete crimp
- Safety Trigger Lock and Emergency Release
Specifications
Key Specifications
- Country of Origin
- United States
- Container Type
- Hard Case
- Dimensions
- 10.6 in x 2.8 in x 4.2 in
- Length
- 10.6 in
- Power Source
- 120V-AC Charger
- Trade Name
- PATRIOT®
- Battery
- 2.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Type
- Crimper
- Weight
- 2.6 lb.
- Battery Type
- 2.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Recharge Time
- 0.5 hr
- Series
- PATRIOT® Series
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945666214
Application - For Use OnCopper Terminals, Splices
Die TypeInterchangeable
Height4.2 in
Operating Voltage18 VDC
Product TypeTooling
ApplicationCrimping
Size10.6 in x 2.8 in x 4.2 in
Warranty3 year limited warranty, 3 year warranty on batteries and charger
Width2.8 in
Class CodeB82
Harmonization Code8205595560
Sub Class CodeB82B82B
Crimping RangesCopper: #22 AWG - #1 AWG terminals and splices
Tool TypeBattery Actuated Crimper
BOX SIZE(in)
NAICS Code3339911156
Certifications
- Buy American Compliant
- No
