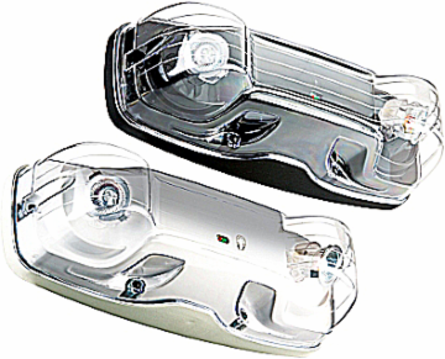

Thomas & Betts 06NXMG36CW3/2LA Emergency Light Unit, 7 Inch Height x 17-3/4 Inch Width, 36W, 6V DC
- MPN: 06NXMG36CW3/2LA
- UPC: 782683490025
- PPN: T-B-06NXMG36CW3/2LA
CAD
$1591.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Battery Unit, Voltage DC: 6V, Unit Type: NEMA-4X, Colour: grey, Battery Type: lead-calcium, Battery Wattage: 36W, 347VAC, self-powered, Lamp Type: MR16 LED, two lamps, Lamp Voltage: 6V, Lamp Wattage: 4W, Head Style: shielded, cold-weather 347VAC, Battery Run Time (Minimum): 30 minutes
Features
- NSF Certified for food processing plants
- Comes standard with non-audible advanced diagnostic charger board, 10 minute time delay and lamp disconnect
- Audible warning and time delay functions can be enabled or disabled during installation
- Non intrusive magnetic test switch "
- Comes standard with tamper-proof screws and bit
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 2
- Weight Uom
- 14.5 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Industrial, Hospitality
- Wattage
- 36W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 7 Inches Height x 17-3/4 Inches Width
- Mounting
- Wall
- Color
- Grey
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating347VAC, 6VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialAluminum / Polycarbonate
Environmental ConditionsCold weather -40°C [-40°F]
Lamp Wattage4W
