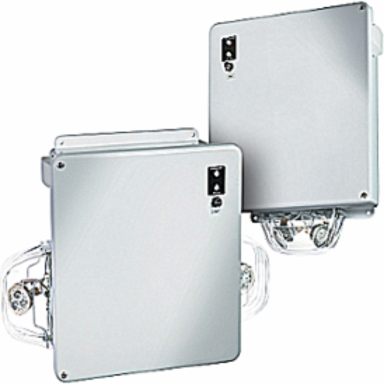

Thomas & Betts 12ESLNX200UD1/2LG Emergency Battery Unit 12V, 200W, 15-1/2 Inch x 13-1/2 Inch, 30 min Runtime
Thomas & Betts 12ESLNX200UD1/2LG Emergency Battery Unit 12V, 200W, 15-1/2 Inch x 13-1/2 Inch, 30 min Runtime
- MPN: 12ESLNX200UD1/2LG
- PPN: T-B-12ESLNX200UD1/2LG
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3188.95/ EA
Description
Battery Unit, Voltage DC: 12V, Unit Type: NEMA-4X, Battery Type: lead-calcium, Battery Wattage: 200W, 120/347VAC, self-powered, diagnostics, audible, time delay (5 minutes), two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 4W, Head Style: shielded, Battery Run Time (Minimum): 30 minutes
Features
- Delivers great pathway illumination up to 70 feet, center to center (with M20 WH lamp)
- Solid-state pulse-type charger current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-free sealed lead acid battery
- NEXUS compatible
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Industrial
- Wattage
- 200W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 15-1/2 Inches Height x 13-1/2 Inches Width
- Lamp Wattage
- 4W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialFiberglass-reinforced polyester
Packaging
- Outer Quantity
- 1
- Weight Uom
- 30.5 lbs. Each
Outer Dimensions (inches)1x1x1
