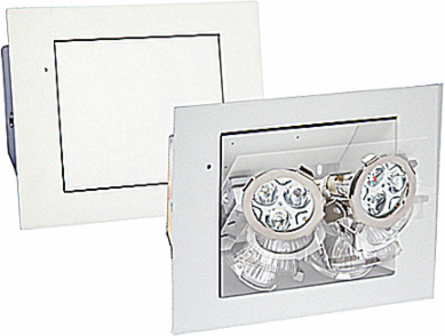

Thomas & Betts RTL75/LJ Emergency Battery Unit, 23-7/8 Inch Height x 9-1/8 Inch Width, 75W, 30 min Runtime
- MPN: RTL75/LJ
- UPC: 782683475664
- PPN: T-B-RTL75/LJ
CAD
$1730.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 75W, 120/347VAC, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Head Style: shielded, Battery Run Time (Minimum): 30 minutes
Features
- Door flips 180° when AC fails
- Fully automatic operation brown-out sensitive transfer circuit automatically goes to emergency lighting mode and, when the power is restored or at the end of battery discharge, the motor turns the door back in it’s original closed mode.
- Impressive Charger fast and automatic recharge, micro-controller driven, temperature compensated, high-precision
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39111709 Emergency light unit |
|---|---|
| Brand Name | Emergi-Lite |
| Application | Institutional, Commercial, Hospitality |
| Wattage | 75W |
| Battery | Lead-calcium |
| Lamp Type | MR16 LED |
| Size | 23-7/8 Inches Height x 9-1/8 Inches Width |
| Mounting | Ceiling or Wall |
| IGCC | 3940 Emergency light unit |
|---|---|
| Type | Battery Unit |
| Standard | CSA |
| Voltage Rating | 120/347VAC, 12VDC |
| Battery Runtime | 30 minutes |
| Number Of Lamps | 2 |
| Material | Metal |
| Lamp Wattage | 6W |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 21 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
