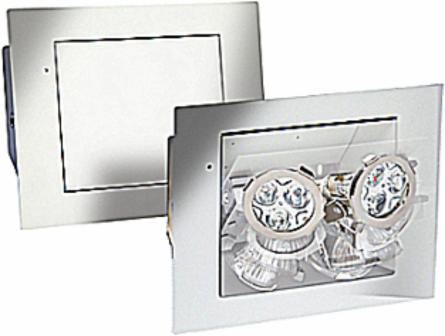

Ready-Lite HIDE75LD9 Emergency Light Unit with Lead-Calcium Battery, 75W, 120/347VAC, 9-1/8 Inch x 23-7/8 Inch
- MPN: HIDE75LD9
- UPC: 624050094583
- PPN: T-B-HIDE75LD9
CAD
$1641.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 75W, 120/347VAC, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 5W, Head Style: shielded, Battery Run Time: 30 minutes
Features
- Door flips 180 degree when AC fails
- Fully automatic operation, brown-out sensitive transfer circuit automatically goes to emergency lighting mode and, when the power is restored or at the end of battery discharge, the motor turns the door back in it’s original closed mode
- Impressive Charger, fast and automatic recharge, micro-controller driven, temperature compensated, high-precision
- High Performance Lighting includes two MR16 halogen lamps; power range from 2x12W up to 2x50W
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39111709 Emergency light unit |
|---|---|
| Brand Name | Ready-Lite |
| Application | Institutional, Commercial |
| Wattage | 75W |
| Battery | Lead-calcium |
| Lamp Type | MR16 LED |
| Size | 9-1/8 Inches Height x 23-7/8 Inches Width |
| Mounting | Ceiling or Wall |
| Lamp Wattage | 5W |
| IGCC | 3940 Emergency light unit |
|---|---|
| Type | Battery Units |
| Standard | CSA |
| Voltage Rating | 120/347VAC |
| Battery Runtime | 30 minutes |
| Number Of Lamps | 2 |
| Material | Back Box: Galvanized steel |
| Color | Off-white |
European Specifications (ETIM)
| ETIM | EC001957 Emergency luminaire |
|---|---|
| Material housing | Steel |
| Monitoring equipment | Automatic self test |
| Voltage type | AC/DC |
| Width | 232mm |
| Lamp power | 5W |
|---|---|
| Colour housing | White |
| Battery quality | Lead |
| Nominal voltage | 120-347V |
| Height/depth | 606mm |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 21 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
