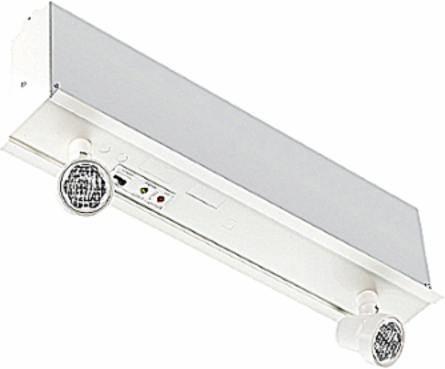

Ready-Lite LDX12-72T2LD7 Emergency Lighting Unit, 12V DC, 72W, 2 MR16 LED Lamps, 30 Minute Runtime
- MPN: LDX12-72T2LD7
- UPC: 624050072390
- PPN: T-B-LDX12-72T2LD7
CAD
$831.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Battery Unit, T-Bar mount, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 72W, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 4W, Colour: factory white, self-powered, Head Style: standard, Battery Run Time (Minimum): 30 minutes
Features
- Battery and charger are concealed above the ceiling level in the unit cabinet
- Removable panel provides easy access to battery and circuitry
- Solid-state pulse-type charger, current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Test switch and LED indicators are mounted on the visible bottom panel
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-freesealed lead acid battery, operates in extreme temperature ranges
- NEXUS compatible
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 4W
- Colour housing
- White
- Voltage type
- DC
- Height/depth
- 184mm
Mounting methodCeiling surface mounting
Material housingSteel
Battery qualityLead
Width603mm
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Ready-Lite
- Application
- Institutional, Industrial, Commercial
- Wattage
- 72W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Material
- Steel
- Color
- Factory White
IGCC3940 Emergency light unit
TypeBattery Units
StandardCSA
Voltage Rating12VDC
Battery Runtime30 minutes
Number Of Lamps2
MountingCeiling
Lamp Wattage4W
Packaging
- Outer Quantity
- 1
- Weight Uom
- 13 lbs. Each
Outer Dimensions (inches)1x1x1
