Weidmuller 1975700000 PCB Plug-In Connector, Female Header, 3 Poles, 3.81 mm Pitch, 1.5 mm Solder Pin Length
- MPN: 1975700000
- PPN: WDM-1975700000
CAD
$2.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, female header, Flange, THT/THR solder connection, 3.81 mm, Number of poles: 3, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Net weight
- 2.36 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

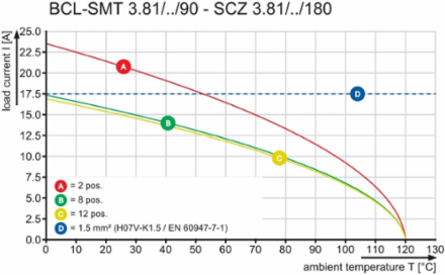

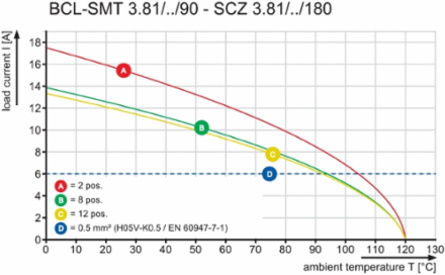

- Rated current, max. number of poles (Tu=20°C)
- 15.4 A
- Rated current, max. number of poles (Tu=40°C)
- 13.7 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)17.5 A
Rated current, min. number of poles (Tu=40°C)17.5 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 76 A
Material Data
- Insulating material
- LCP GF
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Moisture Level (MSL)
- 1
- GWIT
- 930 °C
- Contact material
- Copper alloy
- Layer structure of solder connection
- 1-3 µm Ni / 2-4 µm Sn matt
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
UL 94 flammability ratingV-0
GWFI960 °C
Contact surfacetinned
Layer structure of plug contact1-3 µm Ni / 2-4 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
Packing
- Packaging
- Box
- VPE width
- 90 mm
VPE length25 mm
VPE height125 mm

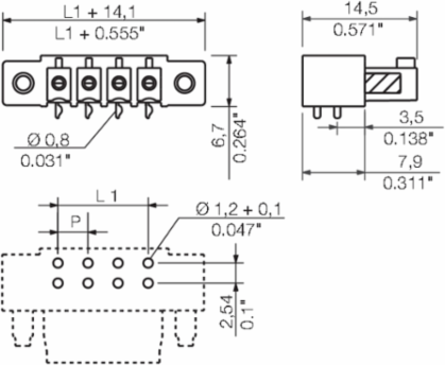

System Specifications
- Product family
- OMNIMATE Signal - series BC/SC 3.81
- Mounting onto the PCB
- THT/THR solder connection
- Pitch in inches (P)
- 0.15 inch
- Number of poles
- 3
- Solder pin length (l)
- 1.5 mm
- Tolerance of solder pin position
- ± 0.1 mm
- Solder pin dimensions = d tolerance
- +0,05 / -0,05 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Template aperture diameter
- 1.6 mm
- L1 in inches
- 0.3 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Can be coded
- Yes
- Tightening torque for screw flange, max.
- 0.3 Nm
- Plugging force/pole, max.
- 9.5 N
Type of connectionBoard connection
Pitch in mm (P)3.81 mm
Outgoing elbow90°
Number of solder pins per pole2
Solder pin length tolerance0 / -0,02 mm
Solder pin dimensionsd = 0.8 mm
Solder eyelet hole diameter (D)1.2 mm
Outside diameter of solder pad1.9 mm
L1 in mm7.62 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Volume resistance6.00 mΩ
Tightening torque for screw flange, min.0.2 Nm
Plugging cycles25
Pulling force/pole, max.6 N
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 11 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated voltage (Use group C / CSA)50 V
Rated current (Use group C / CSA)11 A
