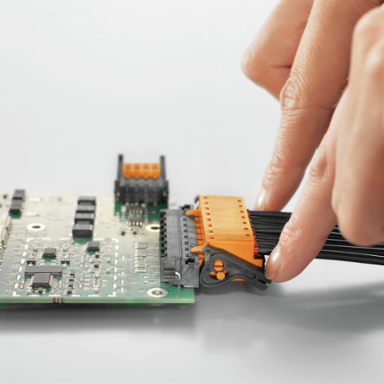

Weidmuller 2442370000 OMNIMATE PCB Connector, 3 Poles, 3.81 mm Pitch, Max. Clamping Range 1.5 mm2
- MPN: 2442370000
- PPN: WDM-2442370000
CAD
$2.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

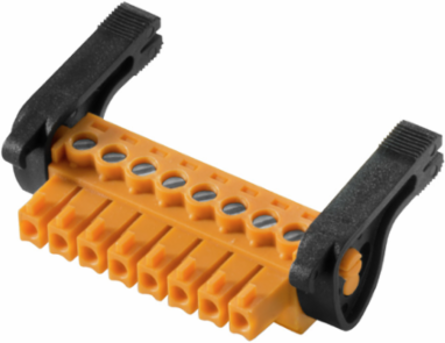

PCB plug-in connector, female plug, 3.81 mm, Number of poles: 3, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 16
Approvals
- Approvals
- cURus
UL File Number SearchE60693

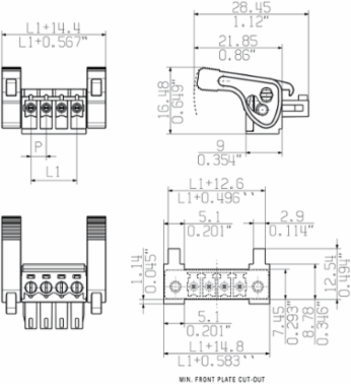

Dimensions And Weights
- Width
- 22.02 mm
- Height
- 16.48 mm
- Depth
- 28.45 mm
- Net weight
- 5.62 g
Width (inches)0.867 inch
Height (inches)0.649 inch
Depth (inches)1.12 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

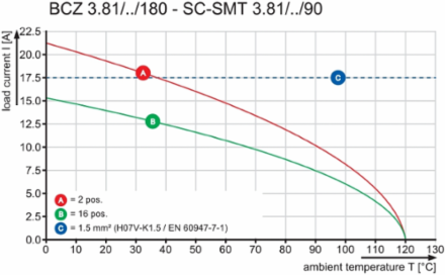

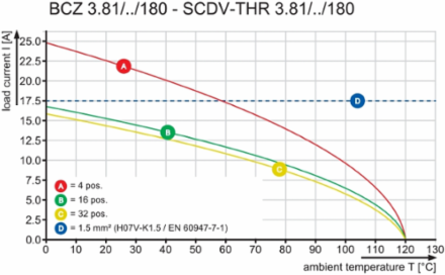

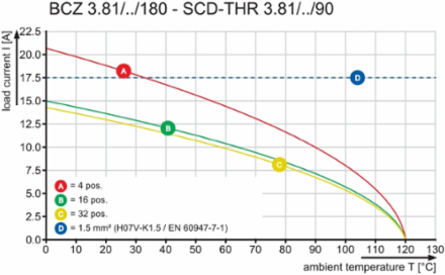

- Rated current, max. number of poles (Tu=20°C)
- 17.5 A
- Rated current, max. number of poles (Tu=40°C)
- 15.2 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)17.5 A
Rated current, min. number of poles (Tu=40°C)17 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 76 A
Material Data
- Insulating material
- PA 66 GF 30
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 550
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Layer structure of plug contact
- 0.5-1.5 µm Cu / 2-5 µm Sn
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Insulating material groupII
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Signal - series BC/SC 3.81
- Wire connection method
- Clamping yoke connection
- Pitch in inches (P)
- 0.15 inch
- Number of poles
- 3
- L1 in inches
- 0.3 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Volume resistance
- 6.00 mΩ
- Stripping length
- 7 mm
- Tightening torque, max.
- 0.25 Nm
- Screwdriver blade
- 0.4 x 2.5
- Plugging cycles
- 25
- Pulling force/pole, max.
- 5 N
Type of connectionField connection
Pitch in mm (P)3.81 mm
Conductor outlet direction180°
L1 in mm7.62 mm
Number of rows1
Rated cross-section1 mm²
Touch-safe protection acc. to DIN VDE 0470IP 20
Can be codedYes
Tightening torque, min.0.2 Nm
Clamping screwM 2
Screwdriver blade standardDIN 5264
Plugging force/pole, max.7 N
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Packing
- Packaging
- Box
- VPE width
- 0 m
VPE length0 m
VPE height0 m
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.08 mm²
- Wire connection cross section AWG, min.
- AWG 28
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.2 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.2 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.4 mm x 1.5 mm ; 2.4 mm
- Max. clamping range
- 1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 16
Solid, max. H05(07) V-U1.5 mm²
Flexible, max. H05(07) V-K1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1.5 mm²
Reference textThe outside diameter of the plastic collar should not be larger than the pitch (P).
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 8 A
- Wire cross-section, AWG, min.
- AWG 28
Rated voltage (Use group C / CSA)50 V
Rated current (Use group C / CSA)8 A
Wire cross-section, AWG, max.AWG 16
