Weidmuller 2442460000 PCB Connector, 13 Poles, 3.81 mm Pitch, 180 Angle, Clamping Range 1.5 mm2
- MPN: 2442460000
- PPN: WDM-2442460000
CAD
$11.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

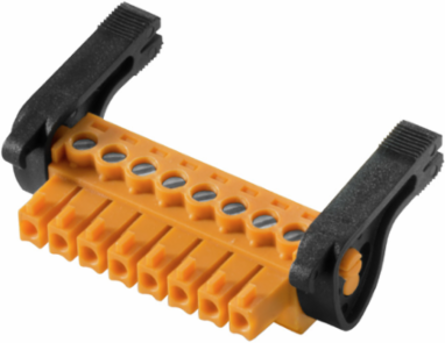

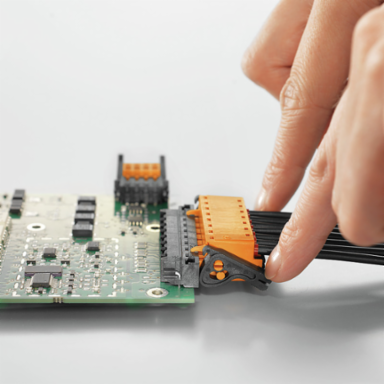

PCB plug-in connector, female plug, 3.81 mm, Number of poles: 13, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (cURus) | cURus |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 10 A |
| Wire cross-section, AWG, min. | AWG 28 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus) | E60693 |
|---|---|
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group D / UL 1059) | 10 A |
| Wire cross-section, AWG, max. | AWG 16 |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|

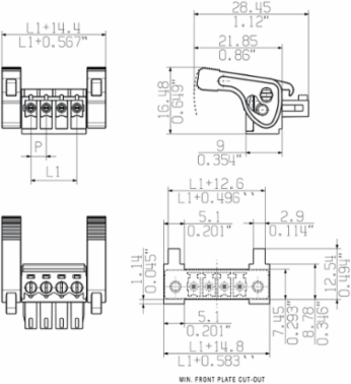

Dimensions And Weights
| Width | 60.12 mm |
|---|---|
| Height | 16.48 mm |
| Depth | 28.45 mm |
| Net weight | 12.61 g |
| Width (inches) | 2.367 inch |
|---|---|
| Height (inches) | 0.649 inch |
| Depth (inches) | 1.12 inch |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|

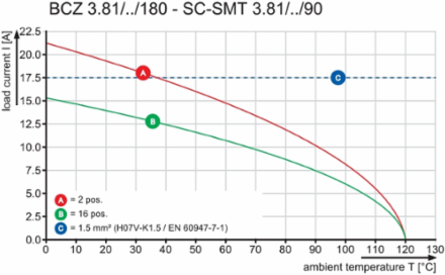

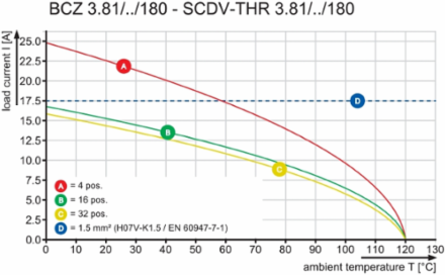

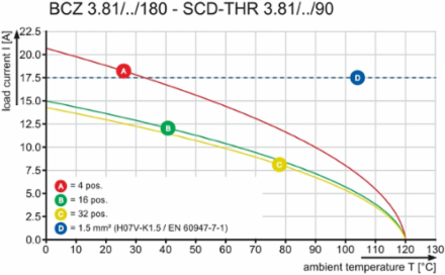

| Rated current, max. number of poles (Tu=20°C) | 17.5 A |
| Rated current, max. number of poles (Tu=40°C) | 15.2 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Rated current, min. number of poles (Tu=20°C) | 17.5 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 17 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Short-time withstand current resistance | 3 x 1s with 76 A |
Material Data
| Insulating material | PA 66 GF 30 |
|---|---|
| Colour chart (similar) | RAL 2000 |
| Comparative Tracking Index (CTI) | ≥ 550 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Layer structure of plug contact | 0.5-1.5 µm Cu / 2-5 µm Sn |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | orange |
|---|---|
| Insulating material group | II |
| Insulation strength | ≥ 108 Ω |
| GWFI | 960 °C |
| Contact surface | tinned |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Parameters
| Product family | OMNIMATE Signal - series BC/SC 3.81 |
|---|---|
| Wire connection method | Clamping yoke connection |
| Pitch in inches (P) | 0.15 inch |
| Number of poles | 13 |
| L1 in inches | 1.8 inch |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Volume resistance | 6.00 mΩ |
| Stripping length | 7 mm |
| Tightening torque, max. | 0.25 Nm |
| Screwdriver blade | 0.4 x 2.5 |
| Plugging cycles | 25 |
| Pulling force/pole, max. | 5 N |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 3.81 mm |
| Conductor outlet direction | 180° |
| L1 in mm | 45.72 mm |
| Number of rows | 1 |
| Rated cross-section | 1 mm² |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Can be coded | Yes |
| Tightening torque, min. | 0.2 Nm |
| Clamping screw | M 2 |
| Screwdriver blade standard | DIN 5264 |
| Plugging force/pole, max. | 7 N |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Packing
| Packaging | Box |
|---|---|
| VPE width | 148 mm |
| VPE length | 167 mm |
|---|---|
| VPE height | 72 mm |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.08 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 28 |
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.2 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.2 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.4 mm x 1.5 mm ; 2.4 mm |
| Max. clamping range | 1.5 mm² |
| Clamping range, max. | 1.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 16 |
| Solid, max. H05(07) V-U | 1.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 mm² |
| Reference text | The outside diameter of the plastic collar should not be larger than the pitch (P). |
Rated Data Acc. To Csa
| Rated voltage (Use group B / CSA) | 300 V |
|---|---|
| Rated current (Use group B / CSA) | 8 A |
| Wire cross-section, AWG, min. | AWG 28 |
| Rated voltage (Use group C / CSA) | 50 V |
|---|---|
| Rated current (Use group C / CSA) | 8 A |
| Wire cross-section, AWG, max. | AWG 16 |
