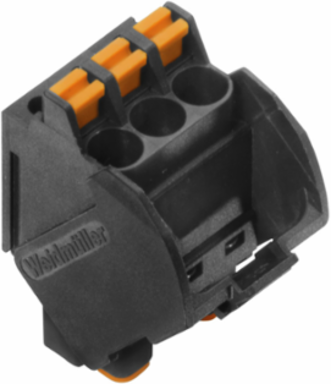

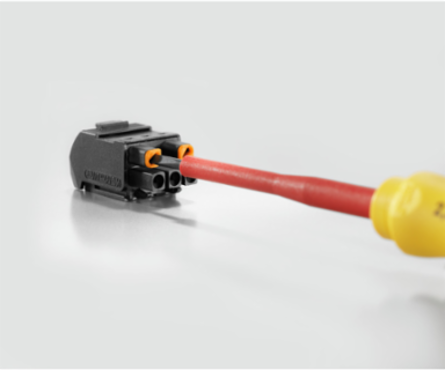

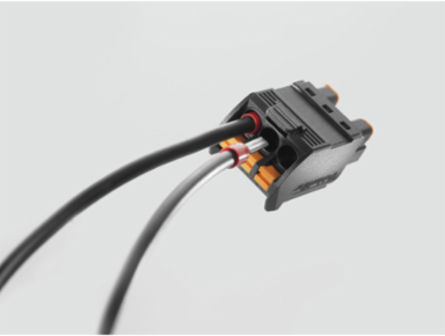

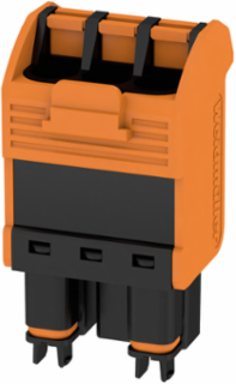

Weidmuller 1989210000 BHF Female Plug Connector, 5.00 mm, 3 Poles, Push In, 10 A
- MPN: 1989210000
- PPN: WDM-1989210000
CAD
$9.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 3, 180°, PUSH IN, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (cURus) | cURus |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group C / UL 1059) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus) | E60693 |
|---|---|
| Rated voltage (Use group C / UL 1059) | 50 V |
| Rated current (Use group B / UL 1059) | 10 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Wire cross-section, AWG, max. | AWG 14 |
Approvals
| Approvals | CSA, cURus |
|---|
| UL File Number Search | E60693 |
|---|
Dimensions And Weights
| Length | 14.6 mm |
|---|---|
| Width | 17.5 mm |
| Depth | 30.82 mm |
| Net weight | 6.91 g |
| Length (inches) | 0.575 inch |
|---|---|
| Width (inches) | 0.689 inch |
| Depth (inches) | 1.213 inch |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 9 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Creepage distance, min. | 3.2 mm |
| Rated current, min. number of poles (Tu=20°C) | 10 A |
|---|---|
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Clearance, min. | 3 mm |
Material Data
| Insulating material | PA 66 GF 30 |
|---|---|
| Colour of operational elements | orange |
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 400 |
| UL 94 flammability rating | V-0 |
| Contact surface | tinned |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | black |
|---|---|
| Material of operational elements | PBT |
| Insulating material group | II |
| Insulation strength | ≥ 108 Ω |
| Contact material | Copper alloy |
| Storage temperature, min. | -40 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Specifications
| Product family | OMNIMATE Signal - series BL/SL 5.00 |
|---|---|
| Pitch in mm (P) | 5 mm |
| Number of poles | 3 |
| L1 in inches | 0.394 inch |
| Pin series quantity | 1 |
| Plugging cycles | 25 |
| Type of connection | Field connection |
|---|---|
| Pitch in inches (P) | 0.197 inch |
| L1 in mm | 10 mm |
| Number of rows | 1 |
| Can be coded | Yes |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Rated Data Acc. To Csa
| Institute (CSA) | CSA |
|---|---|
| Rated voltage (Use group B / CSA) | 300 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group C / CSA) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (CSA) | 200039-70153051 |
|---|---|
| Rated voltage (Use group C / CSA) | 50 V |
| Rated current (Use group B / CSA) | 10 A |
| Rated current (Use group D / CSA) | 10 A |
| Wire cross-section, AWG, max. | AWG 14 |
