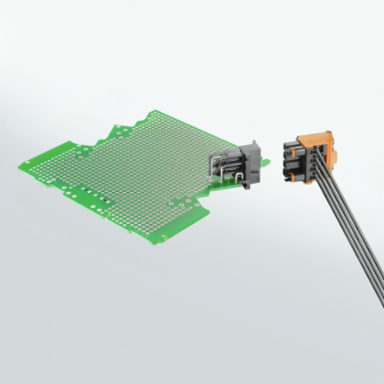

Weidmuller 1063260000 PCB Plug-In Connector with Orange Release Lever, 5.00 Pitch, 1.142 Inch Height
- MPN: 1063260000
- PPN: WDM-1063260000
CAD
$2.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector Orange release lever BHZ 5.00/02/90LH SN BK/OR BX
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (cURus) | cURus |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group C / UL 1059) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus) | E60693 |
|---|---|
| Rated voltage (Use group C / UL 1059) | 50 V |
| Rated current (Use group B / UL 1059) | 10 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Wire cross-section, AWG, max. | AWG 12 |
Approvals
| Approvals | cURus, EAC |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|

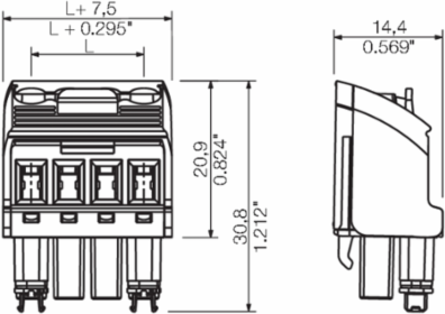

Dimensions And Weights
| Length | 14.6 mm |
|---|---|
| Width | 12.4 mm |
| Height | 29 mm |
| Net weight | 5.14 g |
| Length (inches) | 0.575 inch |
|---|---|
| Width (inches) | 0.488 inch |
| Height (inches) | 1.142 inch |

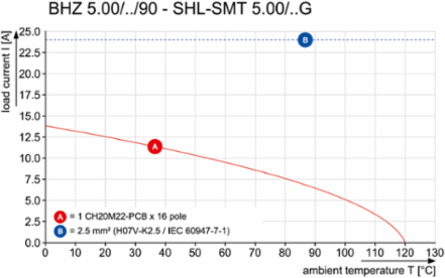

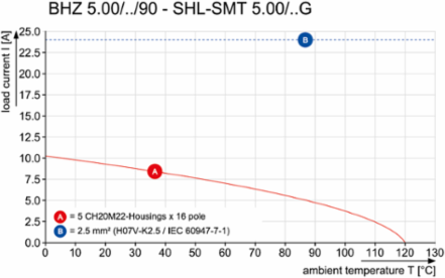

Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 9 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Creepage distance, min. | 3.2 mm |
| Rated current, min. number of poles (Tu=20°C) | 10 A |
|---|---|
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Clearance, min. | 3 mm |
Material Data
| Insulating material | PA 66 GV30 |
|---|---|
| Colour of operational elements | orange |
| Insulating material group | II |
| Insulation strength | ≥ 108 Ω |
| Contact material | CuSn |
| Storage temperature, min. | -40 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
| Colour | black |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 400 |
| UL 94 flammability rating | V-0 |
| Contact surface | tinned |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | 0 °C |
| Temperature range, installation, min. | -25 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Specifications
| Product family | OMNIMATE Housing - series CH20M |
|---|---|
| Pitch in mm (P) | 5 mm |
| Number of poles | 2 |
| L1 in inches | 0.197 inch |
| Pin series quantity | 1 |
| Tightening torque for screw flange, min. | 0.4 Nm |
| Plugging cycles | 25 |
| Type of connection | Field connection |
|---|---|
| Pitch in inches (P) | 0.197 inch |
| L1 in mm | 5 mm |
| Number of rows | 1 |
| Can be coded | Yes |
| Tightening torque for screw flange, max. | 0.6 Nm |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.13 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 26 |
| Solid, min. H05(07) V-U | 0.2 mm² |
| Stranded, max. H07V-R | 2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.25 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.8 mm x 2.4 mm; 3.0 mm |
| Max. clamping range | 3.31 mm² |
| Clamping range, max. | 3.31 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 14 |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2.5 mm² |
| Reference text | The outside diameter of the plastic collar should not be larger than the pitch (P). |
Rated Data Acc. To Csa
| Rated voltage (Use group B / CSA) | 300 V |
|---|---|
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group C / CSA) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Rated voltage (Use group C / CSA) | 50 V |
|---|---|
| Rated current (Use group B / CSA) | 10 A |
| Rated current (Use group D / CSA) | 10 A |
| Wire cross-section, AWG, max. | AWG 12 |
