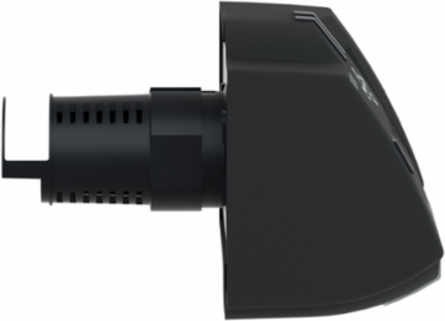

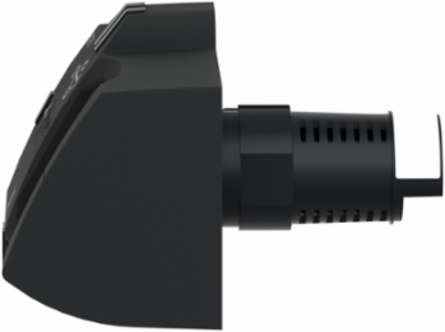

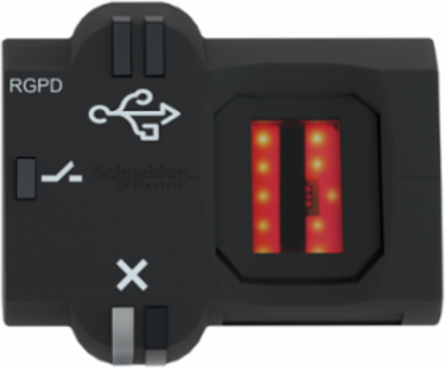

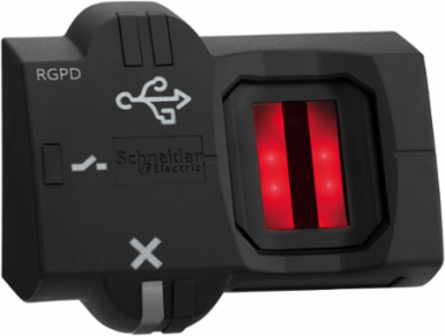

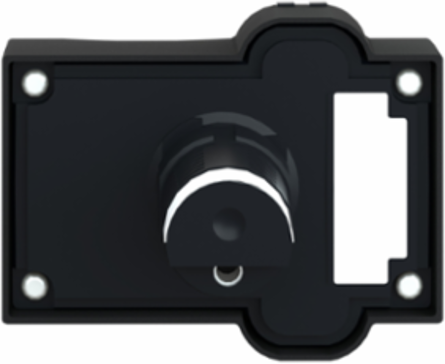

Schneider Electric XB5S8B2L2 Biometric Switch 22mm with USB Connection, 24V DC, IP65 Rating
- MPN: XB5S8B2L2
- PPN: SCH-XB5S8B2L2
CAD
$696.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Diameter
- 22 mm
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- fingerprint reader
- Operator Position Information
- 2 positions
- Output Type
- PNP
- Device Short Name
- XB5S
Product Or Component Typebiometric switch RGPD
Connections - Terminals1 pre-wired cable, 3 x 0.11 mm²
Bezel Materialplastic
Product Specific Applicationmaterials handling || industrial machines
Type Of Operatorstay put
Memory Usage200 users with up to 2 fingerprints per user
Complementary
- Current Consumption
- <= 70 mA no-load
- Maximum Delay Response
- 1.5 s
- Cable Insulation Material
- PvR
- Maximum Switching Current
- 200 mA
- Net Weight
- 0.202 kg
- Communication Port Protocol
- USB
- Software Designation
- XB5SSoft
- Local Signalling
- output state indicator 1 LED green) || error 1 LED red)
- Protection Type
- reverse polarity || short-circuit || overload protection
- Function Of Module
- bi-stable
- Maximum Delay First Up
- 3 s + 0.5 ms per user registered
Electrical Connectionfree wire ends 3 2 m
Short-Circuit Protection250 mA external fuse gG
Connector TypeUSB type A male 1 m
MarkingCE
[Us] Rated Supply Voltage24 V DC
Maximum Delay Recovery1.5 s
Supply Voltage Limits20-30 V DC
Operating Positionvertical surface installation || flat surface installation || horizontal position
Enclosure Materialpolyamide PA66
[Ures] Residual Voltage1 V closed state
Environment
- Product Certifications
- CSA || UL
- Range Of Product
- Harmony XB5S
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -25-70 °C
Ambient Air Temperature For Operation-5-50 °C
StandardsIEC 61000-6-4 || IEC 61000-6-2
Vibration Resistance+/- 3 mm 5-9 Hz)IEC 60068-2-6 || 1 gn 9-500 Hz)IEC 60068-2-6
Nema Degree Of ProtectionNEMA 12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
