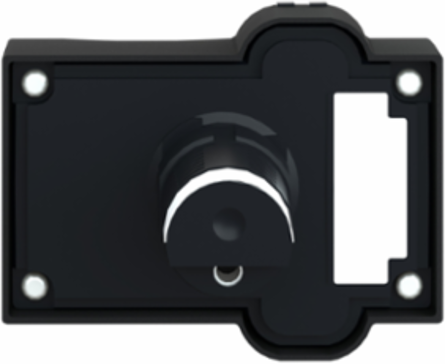

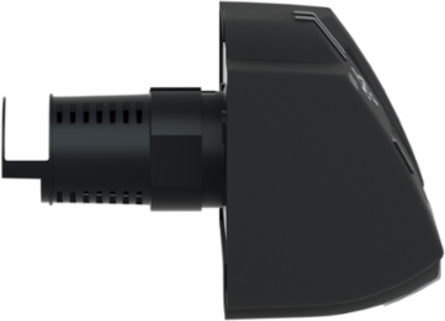

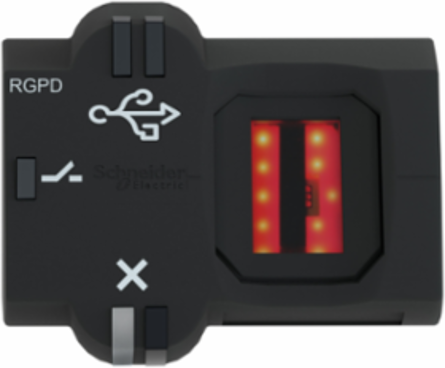

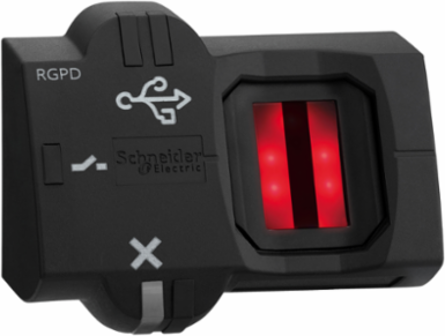

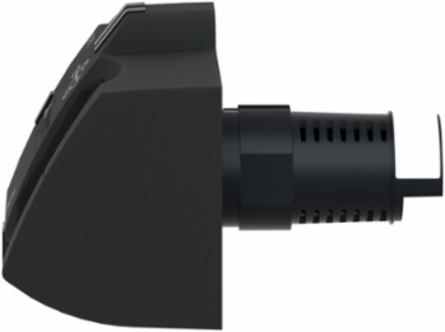

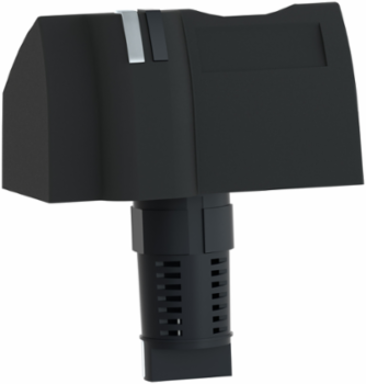

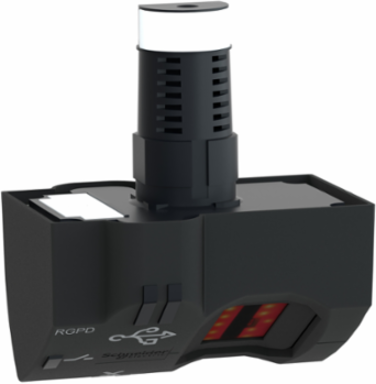

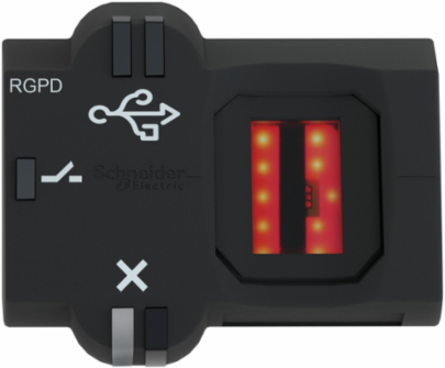

Schneider Electric XB5S8B2M12 Biometric Switch, 22mm, USB, 24V DC, IP65, 200mA Max Current
- MPN: XB5S8B2M12
- PPN: SCH-XB5S8B2M12
CAD
$696.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

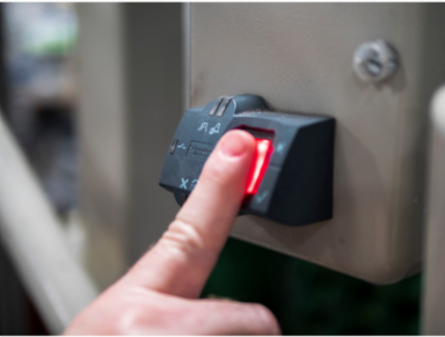

This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Communications & Management Attributes
- Communication Port Protocol
- USB
Complementary Attributes
- Maximum Delay First Up
- 3 s + 0.5 ms per user registered
- Maximum Delay Response
- 1.5 s
Maximum Delay Recovery1.5 s
Maximum Switching Current200 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 70 mA no-load, <= 70 mA no-load<= 70 mA no-load, <= 70 mA no-load
- Local Signalling
- 1 LED (green) for output state indicator, 1 LED (red) for error
- Product Specific Application
- industrial machines, materials handling
- Vibration Resistance
- +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6
- [Us] Rated Supply Voltage
- 24 V, 24 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.2127828125
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.296502604166667
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- plastic
- Connector Type
- USB type A male 1 m
- Electrical Connection

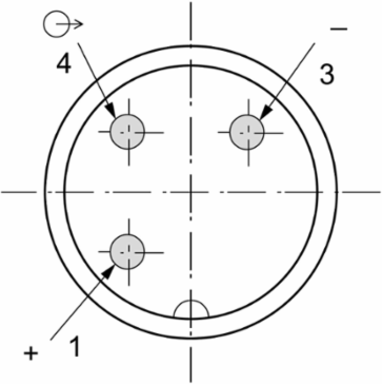

- M12 connector 0.2 m
- Function Of Module
- bi-stable
- Memory Usage
- 200 users with up to 2 fingerprints per user
- Operator Position Information
- 2 positions
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Repair Index
- A
- Returnability
- Yes
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Type Of Operator
- stay put
- Pep Code
- ENVPEP2404013EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Ures] Residual Voltage
- 1 V closed state
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Operating Positionflat surface installation, horizontal position, vertical surface installation
Protection Typeshort-circuit, overload protection, reverse polarity
Certificate AgencyCSA, UL
Carbon Footprint Of The Distribution Phase [A4]0.028114609375000002, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.11342369791666668, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]168 kg CO2 eq., 167.52999999999997
Local Publishable Date2026-04-29
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404013EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Insulation MaterialPvR
Device Short NameXB5S
Enclosure Materialpolyamide PA66
MarkingCE
Mounting Diameter22 mm
Operator Profilefingerprint reader
Product Or Component Typebiometric switch RGPD
Range Of ProductHarmony XB5S
Sale Per Indivisible Quantity1
Software DesignationXB5SSoft
Supply Voltage Limits20-30 V DC
Total Lifecycle Carbon Footprint173 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB5 bistable biometric switch has a pre-wired cable connection and is supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. This product will be 50% active mode with power consumption of 6W and 50% in standby mode with 1.2W of power consumption during 10 years of life time and adhering to internations standards IP20, IP65, IEC 61000-6-4 & 61000-6-2.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh315.36
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Short-circuit Protection250 mA external fuse gG
Package Weight(Lbs)194.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-50 °C, -5-50 °C
- Ip Degree Of Protection
- IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2404013EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint173.1808237239583
Environmental DisclosureENVPEP2404013EN
Nema Degree Of ProtectionNEMA 12
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2404013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- biometric switch RGPD
Range Of ProductHarmony XB5S
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Output Attributes
- Output Type
- PNP
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
