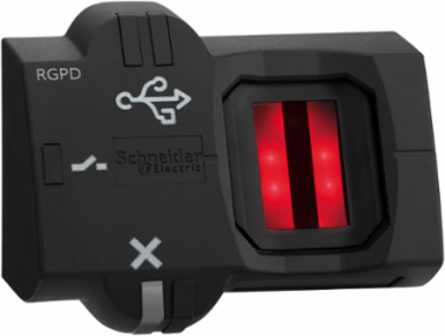

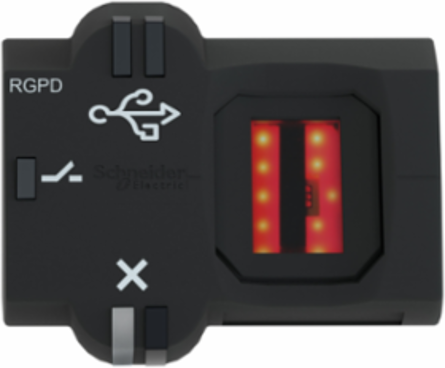

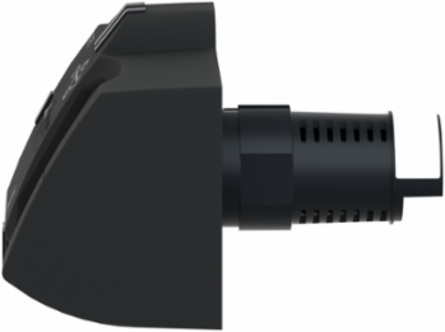

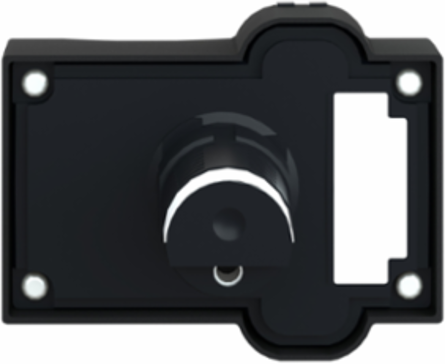

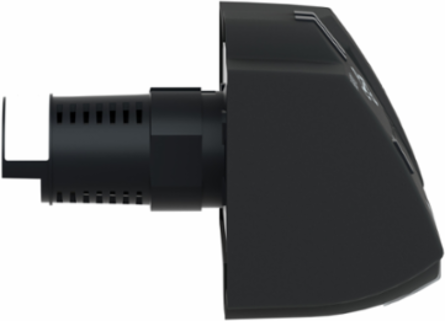

Schneider Electric XB5S9B2M12 Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC

Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC
  • MPN: XB5S9B2M12
  • PPN: SCH-XB5S9B2M12

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$696.46/ EA

Description

This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Specifications

Environment

Product Certifications
UL
Range Of Product
Harmony XB5S
Standards
IEC 61000-6-2
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Operation-5-50 °C
Ambient Air Temperature For Storage-25-70 °C
Nema Degree Of ProtectionNEMA 12
Vibration Resistance+/- 3 mm 5-9 Hz)IEC 60068-2-6

Contractual warranty

Warranty
18 months

Offer Sustainability

Eu Rohs Directive
Under investigation
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Complementary

Current Consumption
<= 70 mA no-load
Communication Port Protocol
USB
Maximum Delay Response
1.5 s
Software Designation
XB5SSoft
Cable Insulation Material
PvR
Local Signalling
output state indicator 1 LED green)
Operating Position
flat surface installation
Enclosure Material
polyamide PA66
Function Of Module
monostable
[Ures] Residual Voltage
1 V closed state
Maximum Delay First Up
3 s + 0.5 ms per user registered
[Us] Rated Supply Voltage24 V DC
Electrical ConnectionM12 connector 0.2 m
Maximum Delay Recovery1.5 s
Short-Circuit Protection250 mA external fuse gG
Supply Voltage Limits20-30 V DC
Connector TypeUSB type A male 1 m
Protection Typeoverload protection
Maximum Switching Current200 mA
MarkingCE
Net Weight0.215 kg

Specifications

Sale Per Indivisible Quantity
1
Operator Profile
fingerprint reader
Mounting Diameter
22 mm
Product Or Component Type
biometric switch RGPD
Memory Usage
200 users with up to 2 fingerprints per user
Ip Degree Of Protection
IP20 EN/IEC 60529 rear face)
Bezel Materialplastic
Product Specific Applicationindustrial machines
Type Of Operatormomentary
Output TypePNP
Device Short NameXB5S
