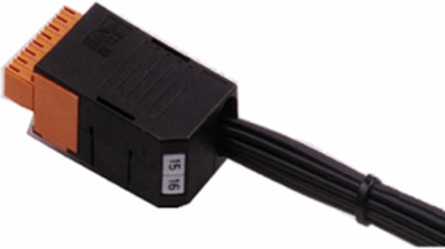

Weidmuller 1745590000 PCB Plug-in Connector, 4 Poles, Black, 50mm Width, PBT Insulating Material
- MPN: 1745590000
- PPN: WDM-1745590000
CAD
$5.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, Accessories, Hood, black, Number of poles: 4
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 2.5 g |
|---|
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|
Material Data
| Insulating material | PBT |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | black |
|---|---|
| GWFI | 960 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
| UNSPSC | 30-21-18-01 |
Packing
| Packaging | Box |
|---|---|
| VPE width | 50 mm |
| VPE length | 20 mm |
|---|---|
| VPE height | 130 mm |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
