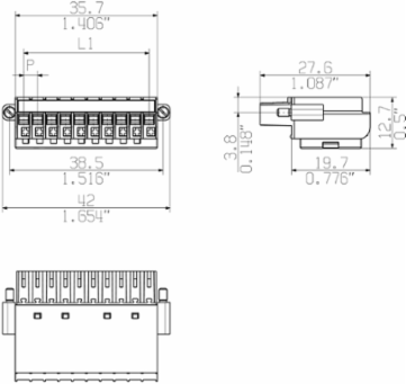

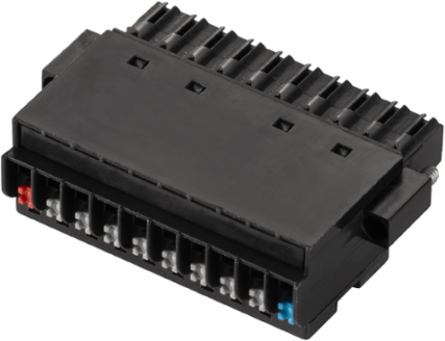

Weidmuller 1965940000 BL-I/O 3.50 mm PNP LED Connector, 10 Poles, 1.5 mm2 Max Connection
- MPN: 1965940000
- PPN: WDM-1965940000
CAD
$27.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BL-I/O 3.50 mm PNP LED Connector, 10 Poles, 1.5 mm2 Max Connection
Specifications
Approvals
| Approvals | CSA |
|---|---|
| Approvals | UR |
| UL File Number Search | E60693 |
| Approvals | EAC |
|---|---|
| ROHS | Conform |
Dimensions And Weights
| Net weight | 13.95 g |
|---|
General Ordering Data
| Type | BL-I/O 3.50/10F PNP LED SN LTGY BX |
|---|---|
| Version | PCB plug-in connector, female plug, 3.50 mm, No. of poles: 10, 180°, PUSH IN, Clamping range, rated connection, max.: 1.5 mm², Box |
| Qty. | 20 pc(s). |
| Product data | UL: 50 V / 5 A / AWG 24 - AWG 16 |
| Order No. | 1965940000 |
|---|---|
| GTIN (EAN) | 4032248657605 |
| Product data | IEC: / 2.2 A / 0.2 - 1.5 mm² |
| Packaging | Box |
Rated Data Acc. To CSA
| Institute (CSA) | icon |
|---|---|
| Rated voltage (Use group B) | 50 V |
| Rated current (use group B) | 5 A |
| Wire cross-section, AWG, min. | AWG 22 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (CSA) | 154685-1202189 |
|---|---|
| Rated voltage (use group D) | 50 V |
| Rated current (use group D) | 5 A |
| Wire cross-section, AWG, max. | AWG 16 |
Rated Data Acc. To UL 1059
| Institute (UR) | icon |
|---|---|
| Rated voltage (use group B) | 50 V |
| Rated current (use group B) | 5 A |
| Wire cross-section, AWG, min. | AWG 24 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR) | E60693 |
|---|---|
| Rated voltage (use group D) | 50 V |
| Rated current (use group D) | 5 A |
| Wire cross-section, AWG, max. | AWG 16 |
Material Data
| Insulating material | PBT |
|---|---|
| Colour chart (similar) | RAL 7035 |
| CTI | ≥ 200 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 75 °C |
| Temperature range, installation, max. | 75 °C |
| Colour | Light Grey |
|---|---|
| Insulating material group | IIIa |
| Insulation resistance | ≥ 10 |
| Contact base material | Copper alloy |
| Contact surface | tinned |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -30 °C |
Classifications
| ETIM 3.0 | EC001284 |
|---|---|
| ETIM 5.0 | EC002637 |
| UNSPSC | 30-21-18-10 |
| eClass 6.2 | 27-26-07-04 |
| eClass 8.1 | 27-44-04-02 |
| eClass 9.1 | 27-44-04-02 |
| ETIM 4.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| eClass 5.1 | 27-26-07-04 |
| eClass 7.1 | 27-44-04-02 |
| eClass 9.0 | 27-44-04-02 |
System Parameters
| Product family | OMNIMATE Signal - series BL/SL 3.50 |
|---|---|
| Wire connection method | PUSH IN |
| Pitch in inches (P) | 0.138 inch |
| No. of poles | 10 |
| L1 in inches | 1.24 inch |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Can be coded | Yes |
| Tightening torque for screw flange, min. | 0.2 Nm |
| Screwdriver blade | 0.4 x 2.5 |
| Plugging cycles | 25 |
| Withdrawal force per pole | 3 N |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 3.5 mm |
| Conductor outlet direction | 180° |
| L1 in mm | 31.5 mm |
| Number of rows | 1 |
| Rated cross-section | 1 mm² |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Stripping length | 8 mm |
| Tightening torque for screw flange, max. | 0.25 Nm |
| Screwdriver blade standard | DIN 5264 |
| push-in force/pole | 8 N |
| Packaging | Box |

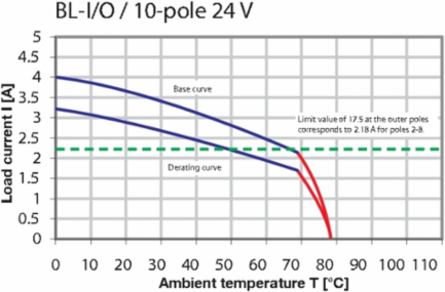

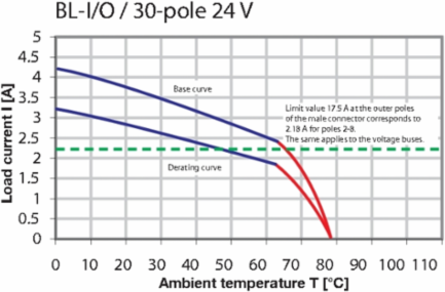

Rated Data Acc. To IEC
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, max. no. of poles (Ta = 20°C) | 2 A |
| Rated current, max. no. of poles (Ta = 40°C) | 2 A |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 0.8 kV |
| Rated current, min. no. of poles (Ta = 20°C) | 2.2 A |
|---|---|
| Rated current, min. no. of poles (Ta = 40°C) | 2.2 A |
| Rated voltage for surge voltage class / pollution degree III/3 | 50 V |
| Short-time withstand current resistance | 3 x 1s with 120 A |
Notes
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, rated connection, min. | 0.2 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 24 |
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.2 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min | 0.2 mm² |
| Plug gauge acc. to EN 60999 a x b; Ø | 2.4 mm x 1.5 mm; 1.9mm |
| Clamping range, rated connection, max. | 1.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 16 |
| Solid, max. H05(07) V-U | 1.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 0.75 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1 mm² |
