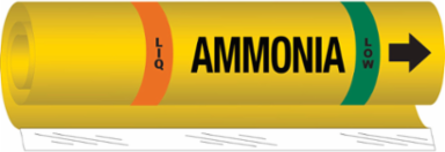

Brady 58009 IIAR Compliant Low Liquid Ammonia Pipe Marker 26 Inch H x 12 Inch W, Fits 2.5 Inch to 7.875 Inch Dia.
- MPN: 58009
- UPC: 754473580094
- PPN: BRD-58009
- UNSPSC: 55121737
CAD
$23.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style II wrap-around pipe markers fit pipes with outside diameter of 2-1/2 in. to 7-7/8 in.
- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black/Green/Orange on Yellow
- Compatible Surface Types
- Curved; Rough
- IIAR Legend
- AMMONIA
- IIAR Pressure Level
- LOW
- Pipe Marker Mounting Style
- Wrap Around
- Pre-Printed Areas on Label
- IIAR Legend
- Printer and Label Applications
- Pipe Marker
- Brady Material Number
- B-689
- Label Properties
- Harsh Environment Labels
- Material
- Coiled Plastic
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Character Height (mm/cm/m)
- 31.8 mm
- Dimensions (Metric)
- 66.04 cm H
- Height (in/ft/yd)
- 26 in
- Maximum Outside Pipe Diameter (in/ft/yd)
- 7.875 in
- Maximum Service Temperature °C
- 120 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 2.5 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 2.5" Dia. Thru 7.875in Dia.
- Sign Size-General
- 26 in x 12 in
- Thickness (in/ft/yd)
- 0.006 in
- Width (in/ft/yd)
- 12 in
Brand NameBrady®
Combined IIAR LegendAMMONIA LIQ LOW
Enables Industry ComplianceANSI A13.1-2007
IIAR PhaseLIQ
LanguageEnglish
Pipe Marker StyleII
Primary Noun, Basic FunctionPipe Marker
Self-Adhesive Pipe Marker FormatDie-Cut on Cards
Indoor or Outdoor UseOutdoor Use
LaminatedPolyester Overlaminate
Material PropertiesSelf-laminating
SAP B-NumberB-689
Character Height (in/ft/yd)1.25 in
Dimensions26 in H x 12 in W
Dimensions 226 in H x 12 in W
Height (mm/cm/m)66.04 cm
Maximum Outside Pipe Diameter (mm/cm/m)200.03 mm
Maximum Service Temperature °F248 °F
Minimum Outside Pipe Diameter (mm/cm/m)63.5 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)26 in H x 12 in W
SizeII
Thickness (mm/cm/m)0.152 mm
Width (mm/cm/m)30.48 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
