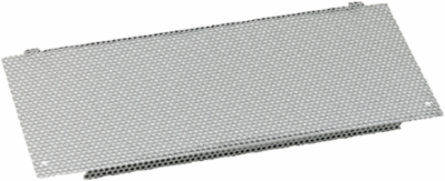

Schneider Electric NSYECAV440 Actassi Blanking Plate with Ventilation Louvres, Galvanised Steel, 440 mm Fixing Centers
- MPN: NSYECAV440
- PPN: SCH-NSYECAV440
CAD
$77.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plain blanking plate with ventilation louvres to be fixed on the internal surface of the base or roof or on a 6U knock out panel of the reduced rear door. Made of sheet steel and can be combined with other types of blanking plates. Delivered with the fixings required for installation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain, France |
|---|---|
| Depth | 165 mm |
| Height | 0.79 in |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cable Gland Type | self ventilated |
| Device Composition | fixing elements1 plate |
| Material | galvanised steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Height Nominal | 20 mm |
| Width Nominal | fixing centers: 440 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | electronic application |
| Fixing Mode | by screws |
| Mounting Location | on outside of the roof |
| Product Or Component Type | blanking plate |
| Range Of Product | Actassi |
| Sustainable Packaging | No |
| Height Useful | 20 mm |
| Accessory / Separate Part Type | cable gland plate |
| Package Weight(Lbs) | 608.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | SF roof for Actassi plates |
General Attributes
| Product Or Component Type | blanking plate |
|---|
| Range Of Product | Actassi |
|---|
ETIM
| ETIM 8 | EC000211 |
|---|
| ETIM 9 | EC000211 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
