Weidmuller 1649430000 PCB Connector 5.08 mm Pitch, 8 Poles, Crimp Connection, Max. 2.5 mm2
- MPN: 1649430000
- PPN: WDM-1649430000
CAD
$1.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

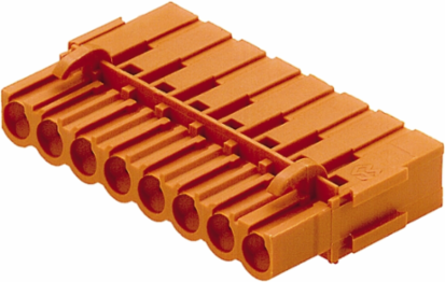

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 8, 180°, Crimp connection, Clamping range, max. : 2.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (UR) | UR |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR) | E60693 |
|---|---|
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group D / UL 1059) | 10 A |
| Wire cross-section, AWG, max. | AWG 14 |
Approvals
| Approvals | CSA, EAC, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights

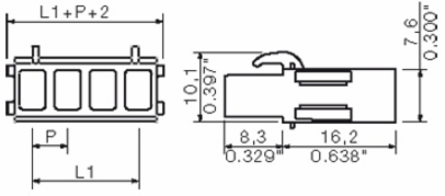

| Width | 42.64 mm |
|---|---|
| Height | 10.1 mm |
| Depth | 24.5 mm |
| Net weight | 2.14 g |
| Width (inches) | 1.679 inch |
|---|---|
| Height (inches) | 0.398 inch |
| Depth (inches) | 0.965 inch |

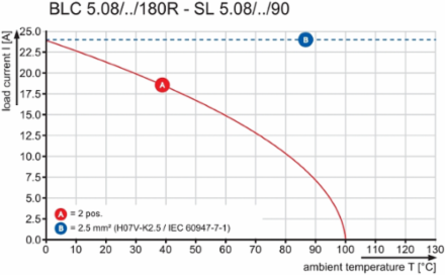

Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, max. number of poles (Tu=20°C) | 14.5 A |
| Rated current, max. number of poles (Tu=40°C) | 12.5 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Rated current, min. number of poles (Tu=20°C) | 21 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 18 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Short-time withstand current resistance | 3 x 1s with 120 A |
Material Data
| Insulating material | PBT GF |
|---|---|
| Colour chart (similar) | RAL 2000 |
| Comparative Tracking Index (CTI) | ≥ 200 |
| UL 94 flammability rating | V-0 |
| Layer structure of plug contact | 4-8 µm Sn hot-dip tinned |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | orange |
|---|---|
| Insulating material group | IIIa |
| Insulation strength | ≥ 108 Ω |
| Contact material | Copper alloy |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
| UNSPSC | 30-21-18-10 |
System Parameters
| Product family | OMNIMATE Signal - series BL/SL 5.08 |
|---|---|
| Wire connection method | Crimp connection |
| Pitch in inches (P) | 0.2 inch |
| Number of poles | 8 |
| L1 in inches | 1.4 inch |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Stripping length | 5 mm |
| Plugging force/pole, max. | 8.5 N |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 5.08 mm |
| Conductor outlet direction | 180° |
| L1 in mm | 35.56 mm |
| Number of rows | 1 |
| Rated cross-section | 2.5 mm² |
| Can be coded | Yes |
| Plugging cycles | 25 |
| Pulling force/pole, max. | 6.5 N |
Packing
| Packaging | Box |
|---|---|
| VPE width | 113 mm |
| VPE length | 63 mm |
|---|---|
| VPE height | 144 mm |
Notes
| Notes | Additional colours on request Rated current related to rated cross-section & min. No. of poles. Rated cross-section depends on crimp contact used. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. |
|---|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.22 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 24 |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Reference text | The outside diameter of the plastic collar should not be larger than the pitch (P). |
| Clamping range, max. | 2.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 14 |
| Flexible, max. H05(07) V-K | 2.5 mm² |
| Max. clamping range | 2.5 mm² |
Rated Data Acc. To Csa
| Institute (CSA) | CSA |
|---|---|
| Rated voltage (Use group B / CSA) | 300 V |
| Rated current (Use group B / CSA) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (CSA) | 12400-374 |
|---|---|
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group D / CSA) | 10 A |
| Wire cross-section, AWG, max. | AWG 14 |
