Weidmuller 1065190000 PCB Connector 5.08 mm 8 Poles 180 Push-In Connection, Max 3.31 mm2
- MPN: 1065190000
- PPN: WDM-1065190000
CAD
$13.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

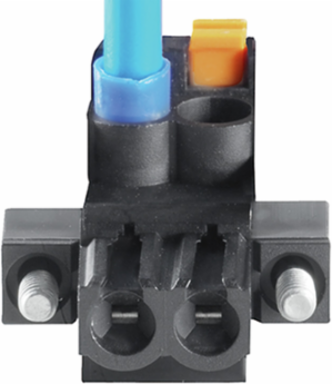

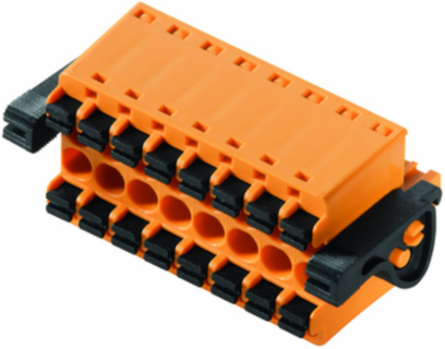

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 8, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 3.31 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Wire cross-section, AWG, min.
- AWG 12
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 26
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform

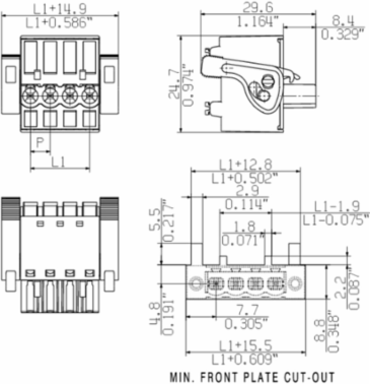

Dimensions And Weights
- Width
- 50.44 mm
- Height
- 24.7 mm
- Depth
- 29.6 mm
- Net weight
- 25.2 g
Width (inches)1.986 inch
Height (inches)0.972 inch
Depth (inches)1.165 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

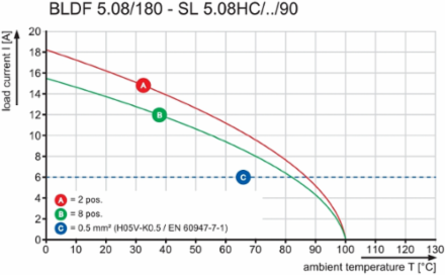

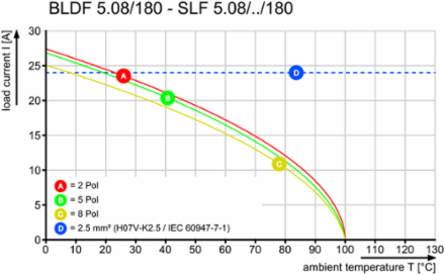

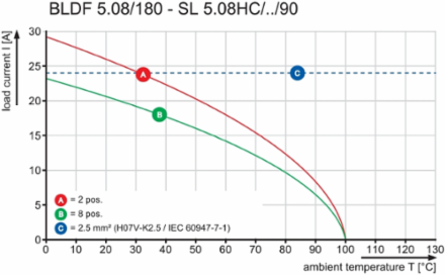

- Rated current, max. number of poles (Tu=20°C)
- 17.4 A
- Rated current, max. number of poles (Tu=40°C)
- 14.9 A
- Rated current cross-connector, max. number of poles (Ta=20°C)
- 23.3 A
- Rated current cross-connector, max. number of poles (Ta=40°C)
- 19.9 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)20.8 A
Rated current, min. number of poles (Tu=40°C)17.9 A
Rated current cross-connector, min. number of poles (Ta=20°C)28.1 A
Rated current cross-connector, min. number of poles (Ta=40°C)24.2 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- PBT
- Colour of operational elements
- black
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- CuSn
- Layer structure of plug contact
- 4-8 µm Sn hot-dip tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -30 °C
Colourorange
Material of operational elementsPBT
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Signal - series BL/SL 5.08
- Wire connection method

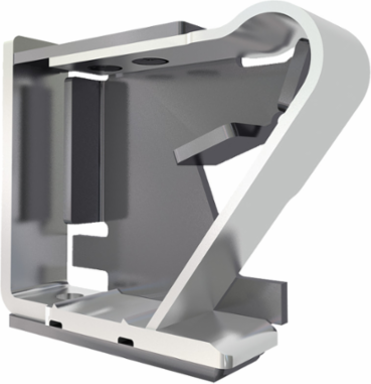

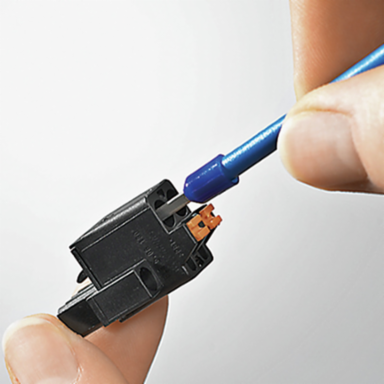

- PUSH IN, Tension-clamp connection
- Pitch in inches (P)
- 0.2 inch
- Number of poles
- 8
- L1 in inches
- 1.4 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Volume resistance
- 4.50 mΩ
- Stripping length
- 10 mm
- Screwdriver blade standard
- DIN 5264
- Plugging force/pole, max.
- 9.5 N
Type of connectionField connection
Pitch in mm (P)5.08 mm
Conductor outlet direction180°
L1 in mm35.56 mm
Number of rows1
Rated cross-section2.5 mm²
Touch-safe protection acc. to DIN VDE 0470IP 20
Can be codedYes
Screwdriver blade0.6 x 3.5
Plugging cycles25
Pulling force/pole, max.7.5 N
Packing
- Packaging
- Box
- VPE width
- 135 mm
VPE length35 mm
VPE height350 mm
Notes
- Notes
- Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.8 mm x 2.0 mm
- Max. clamping range
- 3.31 mm²
Clamping range, max.3.31 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U2.5 mm²
Flexible, max. H05(07) V-K2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.2.5 mm²
Reference textThe outside diameter of the plastic collar should not be larger than the pitch (P).
Cross-Connector Rated Data According To Din Iec
- Rated current cross-connector, min. number of poles (Ta=20°C)
- 28.1 A
- Rated current cross-connector, min. number of poles (Ta=40°C)
- 24.2 A
Rated current cross-connector, max. number of poles (Ta=20°C)23.3 A
Rated current cross-connector, max. number of poles (Ta=40°C)19.9 A
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 18.5 A
- Wire cross-section, AWG, min.
- AWG 12
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
Wire cross-section, AWG, max.AWG 26
