Weidmuller 1622990000 BLL 5.08/07/90 3.2 SN OR BX

BLL 5.08/07/90 3.2 SN OR BX - https://media.province-electric.com/web-weidmueller/2019q4/59e2a22ce8b2dadbc3cad667fdfa3f0b4c2a75e6-medium.png

MPN: 1622990000
PPN: WDM-1622990000

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.95/ EA

Qty:

Loading add to cart quantity...

Description

PCB plug-in connector, female header, closed side, THT solder connection, 5.08 mm, Number of poles: 7, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Specifications

Rated Data Acc. To Ul 1059

Institute (UR): UR

Rated voltage (Use group B / UL 1059): 300 V

Rated current (Use group B / UL 1059): 15 A

Reference to approval values: Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)E60693

Rated voltage (Use group D / UL 1059)300 V

Rated current (Use group D / UL 1059)10 A

Approvals

Approvals: CSA, EAC, UR

UL File Number Search: E60693

ROHSConform

Dimensions And Weights

Net weight: 7.396 g

Rated Data Acc. To Iec

tested acc. to standard: IEC 60664-1, IEC 61984

Rated current, max. number of poles (Tu=20°C): 16 A

Rated current, max. number of poles (Tu=40°C): 14 A

Rated voltage for surge voltage class / pollution degree III/2: 320 V

Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV

Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV

Rated current, min. number of poles (Tu=20°C)23 A

Rated current, min. number of poles (Tu=40°C)20 A

Rated voltage for surge voltage class / pollution degree II/2400 V

Rated voltage for surge voltage class / pollution degree III/3250 V

Rated impulse voltage for surge voltage class/ pollution degree III/24 kV

Short-time withstand current resistance3 x 1s with 120 A

Material Data

Insulating material: PBT GF

Colour chart (similar): RAL 2000

Comparative Tracking Index (CTI): ≥ 200

UL 94 flammability rating: V-0

Contact material: Copper alloy

Layer structure of solder connection: 4-6 µm Sn hot-dip tinned

Storage temperature, min.: -25 °C

Max. relative humidity during storage: 80 %

Operating temperature, max.: 100 °C

Temperature range, installation, max.: 100 °C

Colourorange

Insulating material groupIIIa

Insulation strength≥ 108 Ω

GWFI960 °C

Contact surfacetinned

Layer structure of plug contact4-6 µm Sn hot-dip tinned

Storage temperature, max.55 °C

Operating temperature, min.-50 °C

Temperature range, installation, min.-25 °C

Classifications

ETIM 6.0: EC002637

eClass 9.0: 27-44-04-02

eClass 10.0: 27-44-04-02

ETIM 7.0EC002637

eClass 9.127-44-04-02

UNSPSC30-21-18-10

Packing

Packaging: Box

VPE width: 135 mm

VPE length30 mm

VPE height350 mm

System Specifications

Product family: OMNIMATE Signal - series BL/SL 5.08

Mounting onto the PCB: THT solder connection

Pitch in inches (P): 0.2 inch

Number of poles: 7

Solder pin length (l): 3.2 mm

Tolerance of solder pin position: ± 0.1 mm

Solder eyelet hole diameter (D): 1.3 mm

L1 in mm: 30.48 mm

Number of rows: 1

Touch-safe protection acc. to DIN VDE 57 106: Safe from finger touch

Can be coded: Yes

Plugging force/pole, max.: 5 N

Type of connectionBoard connection

Pitch in mm (P)5.08 mm

Outgoing elbow90°

Number of solder pins per pole2

Solder pin length tolerance+0.1 / -0.3 mm

Solder pin dimensions0.4 x 1.00 mm

Solder eyelet hole diameter tolerance (D)+ 0,1 mm

L1 in inches1.2 inch

Pin series quantity1

Volume resistance4.50 mΩ

Plugging cycles25

Pulling force/pole, max.5 N

Notes

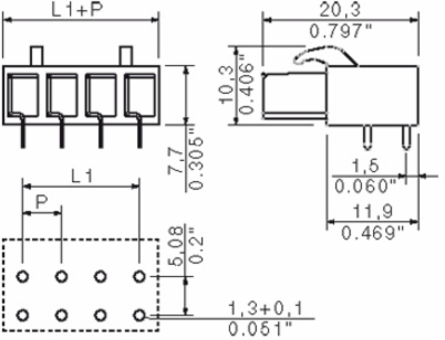

Notes: Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
