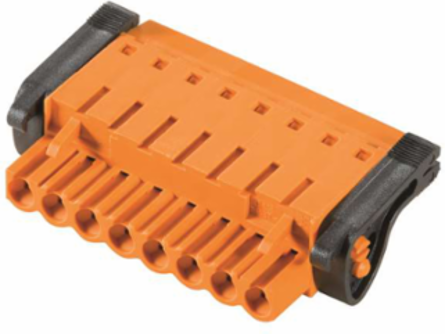

Weidmuller 1890360000 BLT 5.08HC/16/180LR SN OR BX

MPN: 1890360000
PPN: WDM-1890360000

$27.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

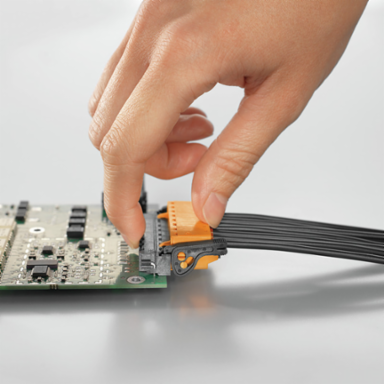

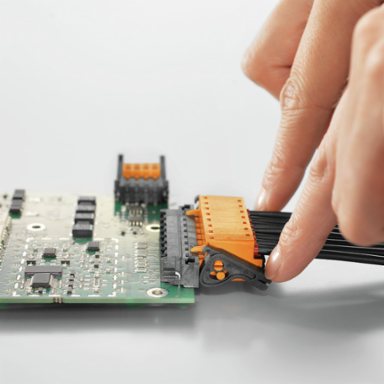

Description

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 16, 180°, TOP connection, Clamping range, max. : 2.5 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	17 A
Wire cross-section, AWG, min.	AWG 26
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, max.	AWG 14

Approvals

Approvals	cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	91.1 mm
Height	15.1 mm
Depth	31.8 mm
Net weight	51.222 g

Width (inches)	3.587 inch
Height (inches)	0.594 inch
Depth (inches)	1.252 inch

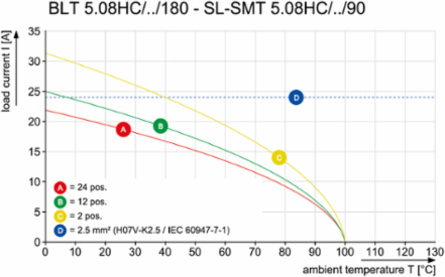

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	19 A
Rated current, max. number of poles (Tu=40°C)	16 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	27 A
Rated current, min. number of poles (Tu=40°C)	24 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Short-time withstand current resistance	3 x 1s with 100 A

Material Data

Insulating material	PBT
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	CuSn
Layer structure of plug contact	4-8 µm Sn hot-dip tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	orange
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Classifications

ETIM 6.0	EC002638
eClass 9.0	27-44-03-09
eClass 10.0	27-44-03-09

ETIM 7.0	EC002638
eClass 9.1	27-44-03-09
UNSPSC	30-21-18-10

System Parameters

Product family	OMNIMATE Signal - series BL/SL 5.08
Wire connection method	TOP connection
Pitch in inches (P)	0.2 inch
Number of poles	16
L1 in inches	3 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Can be coded	Yes
Tightening torque, min.	0.4 Nm
Clamping screw	M 2.5
Screwdriver blade standard	DIN 5264
Plugging force/pole, max.	8 N

Type of connection	Field connection
Pitch in mm (P)	5.08 mm
Conductor outlet direction	180°
L1 in mm	76.2 mm
Number of rows	1
Rated cross-section	2.5 mm²
Volume resistance	4.50 mΩ
Stripping length	13 mm
Tightening torque, max.	0.5 Nm
Screwdriver blade	0.6 x 3.5
Plugging cycles	25
Pulling force/pole, max.	7 N

Packing

Packaging	Box
VPE width	155 mm

VPE length	75 mm
VPE height	260 mm

Notes

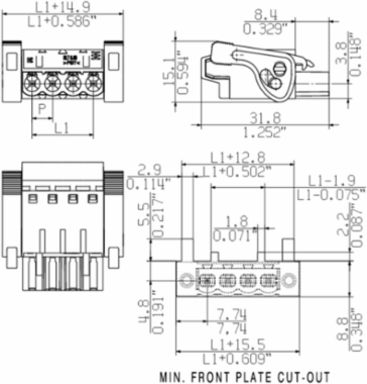

Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 Crimp form A for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.13 mm²
Wire connection cross section AWG, min.	AWG 28
Solid, min. H05(07) V-U	0.2 mm²
Flexible, min. H05(07) V-K	0.2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.2 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.2 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.4 mm x 1.5 mm ; 2.4 mm
Max. clamping range	2.5 mm²

Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 14
Solid, max. H05(07) V-U	2.5 mm²
Flexible, max. H05(07) V-K	1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	1.5 mm²
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P).
