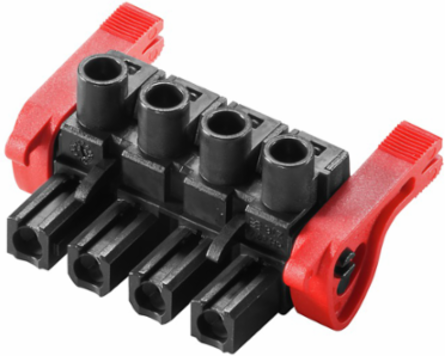

Weidmuller 1164960000 BLZ 7.62HP/06/180LR SN BK BX
- MPN: 1164960000
- PPN: WDM-1164960000
CAD
$8.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 6, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group C / UL 1059)
- 20 A
- Wire cross-section, AWG, min.
- AWG 20
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group B / UL 1059)20 A
Rated current (Use group D / UL 1059)5 A
Wire cross-section, AWG, max.AWG 12
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E60693
ROHSConform

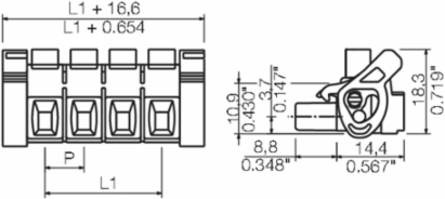

Dimensions And Weights
- Height
- 18.3 mm
- Depth
- 23.4 mm
- Net weight
- 16.24 g
Height (inches)0.72 inch
Depth (inches)0.921 inch

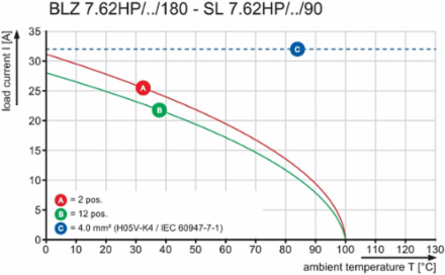

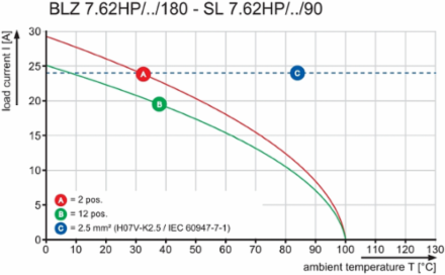

Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 26.5 A
- Rated current, max. number of poles (Tu=40°C)
- 23 A
- Rated voltage for surge voltage class / pollution degree III/2
- 500 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 6 kV
- Clearance, min.
- 9.8 mm
Rated current, min. number of poles (Tu=20°C)29 A
Rated current, min. number of poles (Tu=40°C)25 A
Rated voltage for surge voltage class / pollution degree II/2630 V
Rated voltage for surge voltage class / pollution degree III/3400 V
Rated impulse voltage for surge voltage class/ pollution degree III/26 kV
Short-time withstand current resistance3 x 1s with 180 A
Creepage distance, min.11.3 mm
Material Data
- Colour
- black
- Insulating material group
- IIIa
- Insulation strength
- ≥ 108 Ω
- GWFI
- 960 °C
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colour chart (similar)RAL 9011
Comparative Tracking Index (CTI)≥ 200
UL 94 flammability ratingV-0
Layer structure of plug contact4-8 µm Sn hot-dip tinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Power - series BL/SL 7.62HP
- Wire connection method
- Clamping yoke connection
- Pitch in inches (P)
- 0.3 inch
- L1 in mm
- 38.1 mm
- Pin series quantity
- 1
- Plugging force/pole, max.
- 9.5 N
Type of connectionField connection
Pitch in mm (P)7.62 mm
Number of poles6
L1 in inches1.5 inch
Rated cross-section2.5 mm²
Pulling force/pole, max.8.5 N
Packing
- Packaging
- Box
- VPE width
- 135 mm
VPE length30 mm
VPE height350 mm
Notes
- Notes
- Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.08 mm²
- Wire connection cross section AWG, min.
- AWG 28
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.2 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.2 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.8 mm x 2.4 mm
Clamping range, max.4 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U4 mm²
Flexible, max. H05(07) V-K4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.2.5 mm²
Max. clamping range4 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 20 A
- Wire cross-section, AWG, min.
- AWG 20
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)20 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 12
