Weidmuller 2629750000 BLZ 7.62IT/04/180MF3 SN BK BX
- MPN: 2629750000
- PPN: WDM-2629750000
CAD
$6.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

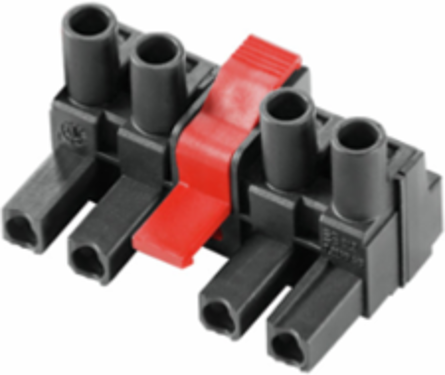

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 4, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Rated voltage (Use group B / UL 1059) | 600 V |
|---|---|
| Rated voltage (Use group D / UL 1059) | 600 V |
| Rated current (Use group C / UL 1059) | 20 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Rated voltage (Use group C / UL 1059) | 600 V |
|---|---|
| Rated current (Use group B / UL 1059) | 20 A |
| Rated current (Use group D / UL 1059) | 5 A |
| Wire cross-section, AWG, max. | AWG 12 |

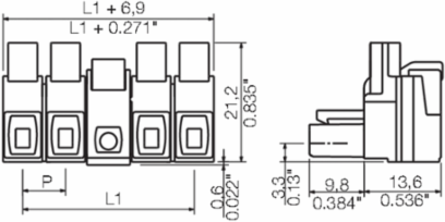

Dimensions And Weights
| Height | 21.2 mm |
|---|---|
| Depth | 23.4 mm |
| Net weight | 9.244 g |
| Height (inches) | 0.835 inch |
|---|---|
| Depth (inches) | 0.921 inch |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|

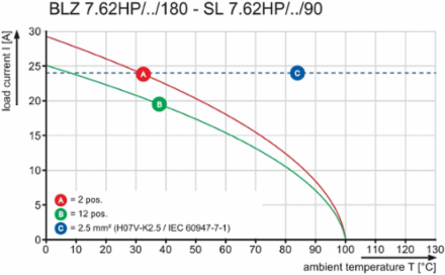

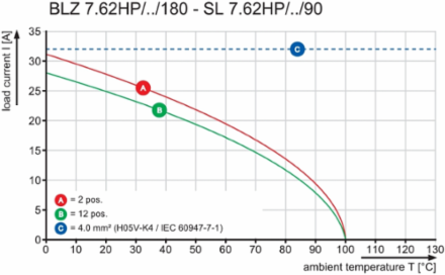

| Rated current, max. number of poles (Tu=20°C) | 26.5 A |
| Rated current, max. number of poles (Tu=40°C) | 23 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 500 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Clearance, min. | 9.8 mm |
| Rated current, min. number of poles (Tu=20°C) | 29 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 25 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 400 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Short-time withstand current resistance | 3 x 1s with 180 A |
| Creepage distance, min. | 11.3 mm |
Material Data
| Insulating material | PBT |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 200 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
| Colour | black |
|---|---|
| Insulating material group | IIIa |
| Insulation strength | ≥ 108 Ω |
| GWFI | 960 °C |
| Layer structure of plug contact | 4-8 µm Sn hot-dip tinned |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Parameters
| Product family | OMNIMATE Power - series BL/SL 7.62IT |
|---|---|
| Wire connection method | Clamping yoke connection |
| Pitch in inches (P) | 0.3 inch |
| L1 in mm | 30.48 mm |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Volume resistance | 5.00 mΩ |
| Stripping length | 7 mm |
| Tightening torque, max. | 0.5 V dc |
| Screwdriver blade standard | DIN 5264 |
| Pulling force/pole, max. | 8.5 N |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 7.62 mm |
| Number of poles | 4 |
| L1 in inches | 1.2 inch |
| Rated cross-section | 2.5 mm² |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Can be coded | Yes |
| Tightening torque, min. | 0.4 V dc |
| Clamping screw | M 2.5 |
| Plugging force/pole, max. | 9.5 N |
Packing
| Packaging | Box |
|---|---|
| VPE width | 0 |
| VPE length | 0 |
|---|---|
| VPE height | 0 |
Notes
| Notes | Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3 |
|---|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.08 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 28 |
| Solid, min. H05(07) V-U | 0.08 mm² |
| Flexible, min. H05(07) V-K | 0.08 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.2 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.2 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.8 mm x 2.4 mm |
| Clamping range, max. | 4 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 12 |
| Solid, max. H05(07) V-U | 4 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2.5 mm² |
| Max. clamping range | 4 mm² |
Rated Data Acc. To Csa
| Rated voltage (Use group B / CSA) | 600 V |
|---|---|
| Rated voltage (Use group D / CSA) | 600 V |
| Rated current (Use group C / CSA) | 20 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Rated voltage (Use group C / CSA) | 600 V |
|---|---|
| Rated current (Use group B / CSA) | 20 A |
| Rated current (Use group D / CSA) | 5 A |
| Wire cross-section, AWG, max. | AWG 12 |
