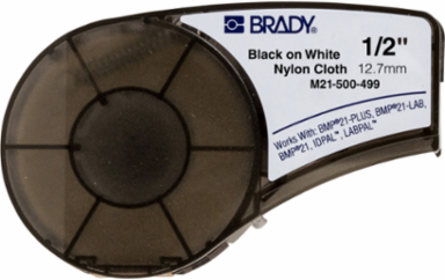

Brady M21-500-499 BMP21 Series Nylon Cloth Labels 0.5" W x 16' L
Brady M21-500-499 BMP21 Series Nylon Cloth Labels 0.5" W x 16' L
- MPN: M21-500-499
- UPC: 662820899648
- PPN: BRD-M21-500-499
- UNSPSC: 55121612
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$48.03/ EA
Description

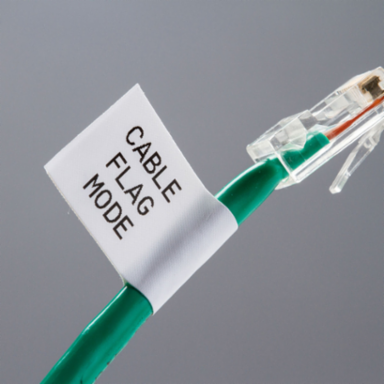

Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.
Features
- Matte white polyamide coated nylon cloth material has a permanent acrylic adhesive and is thermal transfer printable
- Recommended for indoor use
- UL approved;CSA accepted
- All-in-one cartridge includes ribbon and label supply
Specifications
Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; General Identification; Laboratory Labeling; Wire and Cable Labeling
- Color
- Black on White
- Diagram
- Icon 5 (circle with centre dot)
- Finish
- Matte
- Label/Media Format
- Label/Media in Cartridge with Ribbon
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BMP21-PLUS; BMP21-LAB
- Quantity per Row
- 1
- Ribbon Color
- Black
- Tape Color
- White
- Trade Name
- BMP®21
- Adhesive Type
- Permanent Acrylic
- Continuous & Die-Cut Materials Supported
- Continuous Tapes Only
- Material
- Nylon Cloth
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Dimensions (Metric)
- 12.70 mm W x 4.88 m L
- Maximum Service Temperature °C
- 90 °C
- Minimum Service Temperature °C
- -40 °C
- Roll Length (in/ft/yd)
- 16 ft
- Roll Width (in/ft/yd)
- 0.5 in
- Roll/Tape Size (mm/cm/m)
- 12.7 mm W x 4.88 m L
- Size - Width (mm)
- 12.70 mm
- Thickness (mm/cm/m)
- 0.165 mm
Brand NameBrady®
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
For Use with PrinterBMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer; IDPAL™ Handheld Label Maker; LABPAL™ Handheld Label Maker
Manufacturer Part NumberM21-500-499
Print TechnologyThermal Transfer
Printer CompatibilityBMP21-PLUS; BMP21-LAB; BMP21; IDPAL; LABPAL
PSPA Photoluminescence ClassNot Rated
Reflective TypeNon-Reflective
Ribbon SeriesR4300
Total Qty per Pack1 Roll(s) / Box
Adhesive (Y/N)Yes
Brady Material NumberB-499
Label PropertiesPermanent Adhesive Labels
Material PropertiesAutoclavable; Cryogenic storage
SAP B-NumberB-499
Label/Tape Size (in/ft/yd)0.5 in W x 16 ft L
Maximum Service Temperature °F194 °F
Minimum Service Temperature °F-40 °F
Roll Length (mm/cm/m)4.88 m
Roll Width (mm/cm/m)12.7 mm
Size - Length (m)4.88 m
Thickness (in/ft/yd)0.0065 in
Vial/Tube Size1.5 ml
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
