Brady M21-750-427 BMP21 Self-Laminating Vinyl Wire & Cable Labels 0.75 Inch W x 14 Ft L
- MPN: M21-750-427
- UPC: 662820899976
- PPN: BRD-M21-750-427
- UNSPSC: 55121612
CAD
$44.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This B-427 Self-Laminating Vinyl material provides a protective layer over text for excellent abrasion, dirt, oils, solvents, water and excess handling resistance
Features

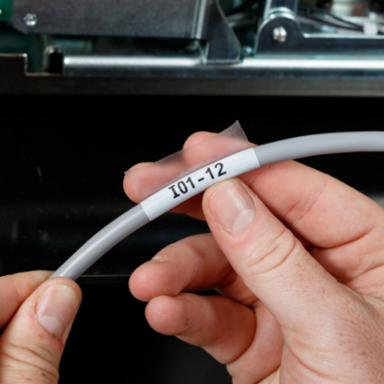

- Self-laminating vinyl labels are ideal for use in cable and wire labeling, voice-data identification, and panel marking
- Permanent acrylic tape adheres well to surfaces that are smooth, rough or powder coated, and to irregular surfaces or surfaces with low surface energy
- Printable white zone with self-lamination prints on a white background with translucent overlaminating area to protect text
- UL approved;CSA accepted

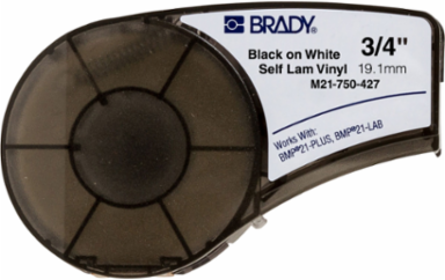

- All-in-one cartridge includes ribbon and label supply
Documentation & Downloads
Specifications
Additional
- Length
- 14 ft (4.30 m)
- Minimum Service Temperature
- -94 °F (-70 °C)
- Adhesion to Stainless Steel
- 38-49 oz/in
- Tack
- 13.3 oz (378 g)
- Tensile Strength Cross Direction
- 11 lbs/in (193 N/100 mm)
- Elongation Cross Direction
- 195%
- Humidity Resistance
- 95% R.H. at 100 °F (37 °C) for 30 days
- Weatherability
- 30 days, no visible effect
- Not Recommended For
- Harsh organic solvents (methyl ethyl ketone, acetone, 1,1,1-trichloroethane)
- Thickness
- 0.004 in (0.102 mm)
- Adhesive Type
- Permanent Acrylic
- Compliance
- UL Recognized to UL969 and UL2238; EU RoHS Compliant (2011/65/EU, 2015/863)
- Brand
- Brady®
Maximum Service Temperature158 °F (70 °C)
Print TechnologyThermal Transfer
Adhesion to Polypropylene25-33 oz/in
Tensile Strength Machine Direction12 lbs/in (210 N/100 mm)
Elongation Machine Direction152%
Flammability Burn Time<10 seconds
UV Light Resistance30 days, no visible effect
Chemical ResistanceResistant to cleaners, isopropyl alcohol, mineral spirits, brake fluid, SAE 30 WT oil, JP-8 jet fuel
Width0.75 in (19.05 mm)
MaterialSelf-laminating Vinyl (Translucent vinyl)
FinishMatte, Self-laminated with white printable zone and translucent overlaminating area
ColorBlack on White/Transparent, Translucent/White
