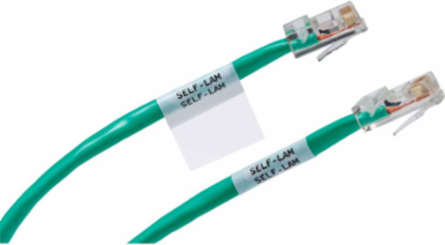

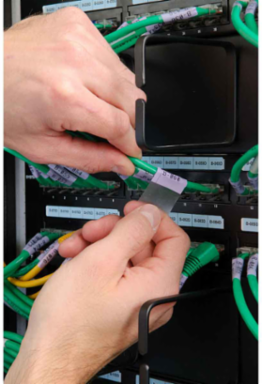

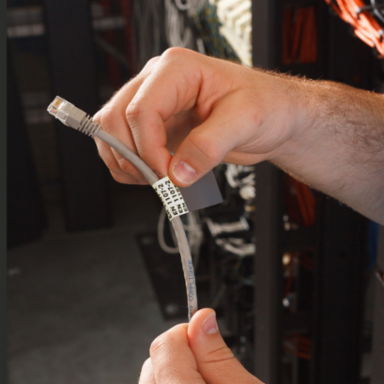

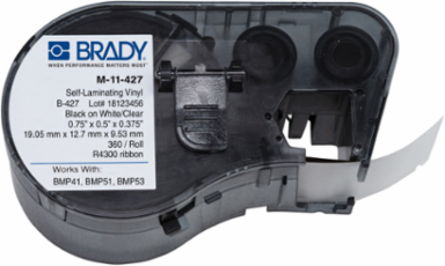

Brady M-11-427 Self-Laminating Vinyl Wire and Cable Labels, 0.75 Inch H x 0.5 Inch W, Permanent Acrylic
- MPN: M-11-427
- UPC: 754473083304
- PPN: BRD-M-11-427
- UNSPSC: 55121612
CAD
$62.99
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This B-427 Self-Laminating Vinyl material provides a protective layer over text for excellent abrasion, dirt, oils, solvents, water and excess handling resistance
Features
- Self-laminating label has excellent clarity and conformability making it ideal for wire and cable labeling
- Permanent acrylic tape adheres well to surfaces that are smooth, rough or powder coated, and to irregular surfaces or surfaces with low surface energy
- Printable white zone with self-lamination prints on a white background with translucent overlaminating area to protect text
- UL approved;CSA accepted
- All-in-one cartridge includes label supply and R4300 Series ribbon
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Black on White/Transparent
- Diagram
- Icon 4 (D with centre dot)
- Finish
- Matte
- Label/Media Format
- Label/Media in Cartridge with Ribbon
- Primary Noun, Basic Function
- Cartridge Tape
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BMP41; BMP51
- Quantity per Row
- 1
- Ribbon Series
- R4300
- Smart Cell
- Yes
- Tape Color
- Clear/White
- Total Quantity
- 360
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Self-laminating Vinyl
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 0.75 in H x 0.5 in W
- Dimensions 2
- 0.75 in H x 0.5 in W
- Height (mm/cm/m)
- 19.05 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.16 in
- Maximum Wire Gauge
- 10 gauge
- Minimum Service Temperature °F
- -94 °F
- Minimum Wire Gauge
- 16 gauge
- Printable Area Dimensions (Metric)
- 9.53 mm H x 12.70 mm W
- Printable Area Height (mm/cm/m)
- 9.53 mm
- Printable Area Width (mm/cm/m)
- 12.70 mm
- Size - Width (mm)
- 12.70 mm
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 12.7 mm
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
For Use with PrinterBMP®41 Label Printer; BMP®51 Label Printer; BMP®53 Label Printer
Manufacturer Part NumberM-11-427
Print TechnologyThermal Transfer
Printer CompatibilityBMP41; BMP51; BMP53
Quantity per Roll360
Ribbon ColorBlack
ShapeRectangle
SoftwareLabelMark
Total Qty per Pack360 Label(s) / Box
Trade NameM Series
Brady Material NumberB-427
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesFlame-retardant; Self-laminating
SAP B-NumberB-427
Dimensions (Metric)12.70 mm W x 19.05 mm H
Height (in/ft/yd)0.75 in
Label/Tape Size (in/ft/yd)0.75 in H x 0.5 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)3.00 mm
Minimum Service Temperature °C-70 °C
Minimum Wire Diameter (mm/cm/m)2.00 mm
Printable Area Dimensions0.375 in H x 0.5 in W
Printable Area Height (in/ft/yd)0.375 in
Printable Area Width (in/ft/yd)0.5 in
Sign Size-General0.75 in x 0.5 in
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)0.5 in
Wire Gauge Range16 gauge to 10 gauge
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
