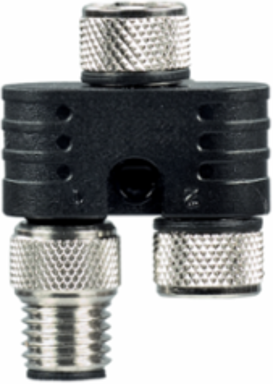

Schmersal 101194060 BNS-Y-02 Y-Adapter, M8 Thread, 10 mm Length, IP67, 23.5 mm Width
- MPN: 101194060
- PPN: SCM-101194060
CAD
$71.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BNS-Y-02 Y-Adapter, M8 Thread, 10 mm Length, IP67, 23.5 mm Width
Documentation & Downloads
Specifications
Key Specifications
- Length
- 10 mm
- Height
- 31 mm
Width23.5 mm
Note
- Note (General)

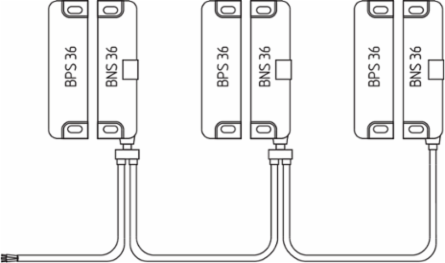

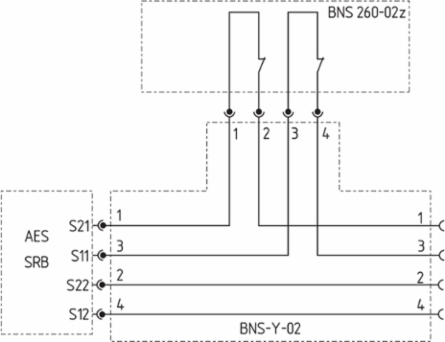

- The adapter BNS-Y-02 is intended for safety sensors BNS with two normally closed contacts. With the BNS-Y-02, a series circuit is set up where the two normally closed contacts per sensor are connected in a two-channel series arrangement. | Any conventional 4-pole cable with M8 connector can be used as connecting cable. | The sensor chain is extended by connecting further Y-adapters in the direction of the arrow. The last safety sensor is connected to the female connector on the extension as the termination. | Only safety sensors with the same contact configuration can be connected in series. The types BNS-Y-11 and BNS-Y-02 are not allowed to be connected together in a mixed configuration. | The maximum length of the series wiring is 50 m.
Mechanical data - Dimensions
- Width
- 23.5 mm
- Diameter of the ISO-thread
- M8
Height31 mm
General data
- Versions
- Y-adapter
- Gross weight
- 23 g
Connector (electric)2 x Female connector, 4-pole | 1 x Male connector, 4-pole
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data
- Mechanical life, minimum
- 100 Cycles
Accessory
- Recommendation (product combination)
- BNS 33 | BNS 36 | BNS 260
