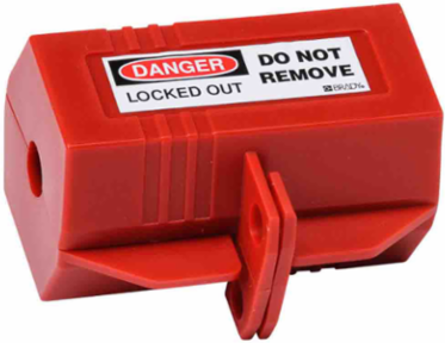

Brady 65674 Electrical Plug Lockout Device, Accommodates Up to 1.7 Inch Diameter Plugs, Polypropylene
- MPN: 65674
- UPC: 754473656744
- PPN: BRD-65674
- UNSPSC: 39121906
CAD
$28.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electrical plug lockouts are a simple solution for electric equipment lockout procedures. They prevent electrical plugs from being inserted into a wall outlet.
Features
- Accommodates a large variety of plug shapes and sizes
- Constructed of rugged polypropylene
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Maximum Number of Padlocks | 2 |
| Primary Noun, Basic Function | Lockout Device |
| Text Legend | DANGER LOCKED OUT DO NOT REMOVE |
| Adhesive (Y/N) | No |
| Lockout Material | Polypropylene |
| SAP B-Number | LOTO-5 |
| Depth (mm/cm/m) | 80.01 mm |
| Dimensions (Metric) | 88.90 mm W x 50.80 mm H x 80.01 mm D |
| Height (mm/cm/m) | 50.80 mm |
| Maximum Cord Diameter (in/ft/yd) | 0.5 in |
| Maximum Plug Diameter (in/ft/yd) | 1.7 in |
| Maximum Plug Length (in/ft/yd) | 3.2 in |
| Maximum Plug Size (in/ft/yd) | 3.2 in L x 1.7 in Dia |
| Maximum Shackle Diameter (in/ft/yd) | 0.36 in |
| Maximum Wire Diameter (mm/cm/m) | 10.00 mm |
| Minimum Shackle Clearance - (mm/cm/m) | 20.00 mm |
| Plug Voltage | 110 V |
| Size - W x H x D (mm) | 88.90 x 50.80 x 80.01 |
| Width (in/ft/yd) | 3.5 in |
| Color | Red |
|---|---|
| Language | English |
| Plug Lockout Type | Plug-Encasing |
| Risk Type | Electrical Risk |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-5 |
| Material | Polypropylene |
| Depth (in/ft/yd) | 2 in |
| Dimensions | 2 in H x 3.5 in W x 2 in D |
| Height (in/ft/yd) | 2 in |
| Length (mm/cm/m) | 88.9 mm |
| Maximum Cord Diameter (mm/cm/m) | 12.7 mm |
| Maximum Plug Diameter (mm/cm/m) | 43.18 mm |
| Maximum Plug Length (mm/cm/m) | 81.28 mm |
| Maximum Service Temperature °C | 80 °C |
| Maximum Shackle Diameter (mm/cm/m) | 9.14 mm |
| Minimum Service Temperature °C | -20 °C |
| Minimum Wire Diameter (mm/cm/m) | 10.00 mm |
| Sign Size-General | 2 in x 3.5 in |
| Size - Width (mm) | 88.90 mm |
| Width (mm/cm/m) | 80.01 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
