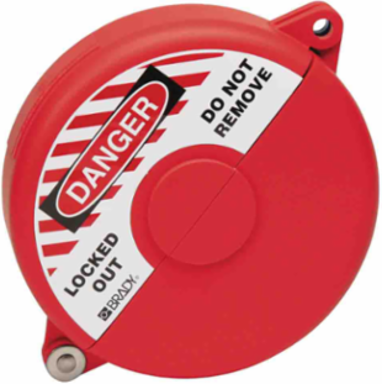

Brady 65562 Gate Valve Lockout Device, 6.75 Inch Diameter, Hinged, Polypropylene Material
- MPN: 65562
- UPC: 754473655624
- PPN: BRD-65562
- UNSPSC: 39121909
CAD
$42.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Gate valve lockout devices deny access and cover the valve handle. This device's unique knockout center fits OS&Y or "rising stem" valves.
Features
- Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
- Supplied with English, Spanish and French danger labels

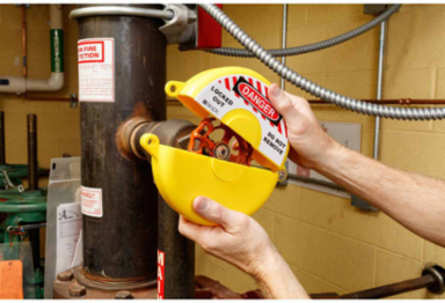

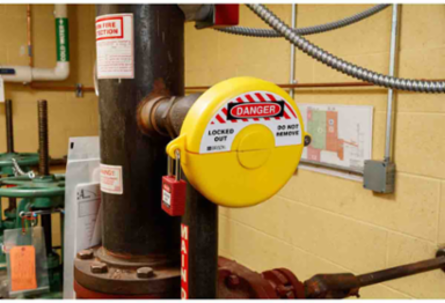

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Accepts padlock shackles up to 3/8 in. in diameter
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Labels Supplied
- Yes
- Maximum Number of Padlocks
- 1
- Primary Noun, Basic Function
- Lockout Device
- Text Legend
- DANGER LOCKED OUT DO NOT REMOVE
- Adhesive (Y/N)
- No
- Lockout Material
- Polypropylene
- SAP B-Number
- LOTO-7
- Diameter (in/ft/yd)
- 6.75 in
- Dimensions
- 6.75 in Dia
- Height (mm/cm/m)
- 181.00 mm
- Lockout Height (in/ft/yd)
- 2.38 in
- Lockout Width (in/ft/yd)
- 8.82 in
- Maximum Service Temperature °C
- 150 °C
- Maximum Shackle Diameter (in/ft/yd)
- 0.375 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Rising Stem Knockout Hole Diameter (in/ft/yd)
- 2.5 in
- Service Temperature Range °C
- -40 °C to 150 °C
- Sign Size-General
- 6.75 in Dia
- Size - Width (mm)
- 224.10 mm
- Valve Wheel Diameter Range (in/ft/yd)
- 5 to 6.5 in
ColorRed
Gate Valve Lockout TypeHinged
LanguageEnglish; French; Spanish
National Stock Number (NSN)5120015007630
Risk TypeMechanical Risk
Total Qty per Pack1 Piece(s) / Pack
Brady Material NumberLOTO-7
MaterialPolypropylene
Depth (mm/cm/m)60.40 mm
Diameter (mm/cm/m)171.45 mm
Dimensions (Metric)224.10 mm W x 181.00 mm H x 171.45 mm Dia x 60.40 mm D
Hole Inside Diameter (mm/cm/m)63.50 mm
Lockout Height (mm/cm/m)60.5 mm
Lockout Width (mm/cm/m)224.03 mm
Maximum Service Temperature °F302 °F
Maximum Shackle Diameter (mm/cm/m)9.53 mm
Minimum Service Temperature °F-40 °F
Minimum Shackle Clearance - (mm/cm/m)19.05 mm
Rising Stem Knockout Hole Diameter (mm/cm/m)63.5 mm
Service Temperature Range °F-40 °F to 302 °F
Size - W x H x D (mm)224.10 x 181.00 x 60.40
Valve Wheel Diameter (mm/cm/m)127 - 165
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
