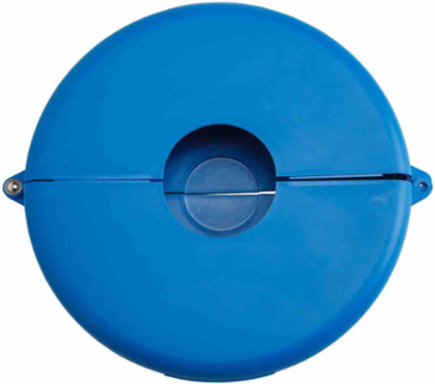

Brady 65589 Gate Valve Lockout Device, Polypropylene, 4.11 Inch Knockout, 3 Inch Height
- MPN: 65589
- UPC: 754473655891
- PPN: BRD-65589
- UNSPSC: 39121909
CAD
$85.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Gate valve lockout devices deny access and cover the valve handle. This device's unique knockout center fits OS&Y or "rising stem" valves.
Features
- Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
- Supplied with English, Spanish and French danger labels

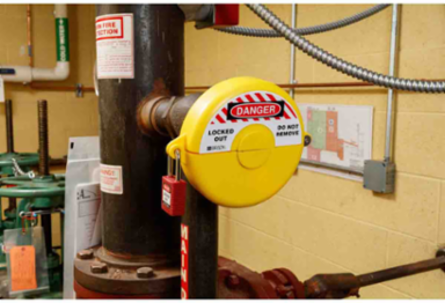

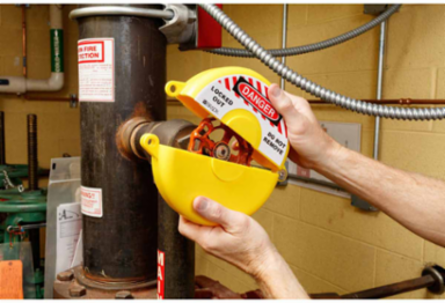

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Accepts padlock shackles up to 3/8 in. in diameter
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Labels Supplied | Yes |
| Maximum Number of Padlocks | 1 |
| Risk Type | Mechanical Risk |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-7 |
| Material | Polypropylene |
| Depth (mm/cm/m) | 76.20 mm |
| Diameter (mm/cm/m) | 354.58 mm |
| Dimensions (Metric) | 405.10 mm W x 363.50 mm H x 354.58 mm Dia x 76.20 mm D |
| Hole Inside Diameter (mm/cm/m) | 104.50 mm |
| Lockout Height (mm/cm/m) | 76.2 mm |
| Lockout Width (mm/cm/m) | 405.13 mm |
| Maximum Service Temperature °F | 302 °F |
| Maximum Shackle Diameter (mm/cm/m) | 9.53 mm |
| Minimum Service Temperature °F | -40 °F |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Rising Stem Knockout Hole Diameter (mm/cm/m) | 104.39 mm |
| Service Temperature Range °F | -40 °F to 302 °F |
| Size - W x H x D (mm) | 405.10 x 363.50 x 76.20 |
| Valve Wheel Diameter (mm/cm/m) | 254 - 330 |
| Color | Blue |
|---|---|

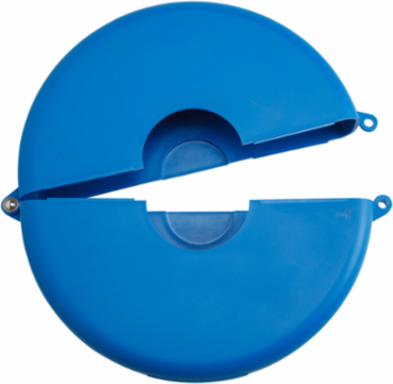

| Gate Valve Lockout Type | Hinged |
| Language | English; French; Spanish |
| Primary Noun, Basic Function | Lockout Device |
| Text Legend | DANGER LOCKED OUT DO NOT REMOVE |
| Adhesive (Y/N) | No |
| Lockout Material | Polypropylene |
| SAP B-Number | LOTO-7 |
| Diameter (in/ft/yd) | 13.96 in |
| Dimensions | 13.96 in Dia |
| Height (mm/cm/m) | 363.50 mm |
| Lockout Height (in/ft/yd) | 3 in |
| Lockout Width (in/ft/yd) | 15.95 in |
| Maximum Service Temperature °C | 150 °C |
| Maximum Shackle Diameter (in/ft/yd) | 0.375 in |
| Minimum Service Temperature °C | -40 °C |
| Minimum Shackle Clearance (in/ft/yd) | 0.75 in |
| Rising Stem Knockout Hole Diameter (in/ft/yd) | 4.11 in |
| Service Temperature Range °C | -40 °C to 150 °C |
| Sign Size-General | 13.96 in Dia |
| Size - Width (mm) | 405.10 mm |
| Valve Wheel Diameter Range (in/ft/yd) | 10 to 13 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
