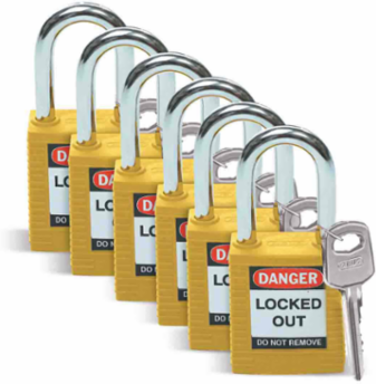

Brady 51346 Nonconductive Nylon Padlock - 1.75 in H x 1.5 in W, 1.5 in Shackle Clearance, 6-Pin Cylinder
Brady 51346 Nonconductive Nylon Padlock - 1.75 in H x 1.5 in W, 1.5 in Shackle Clearance, 6-Pin Cylinder
- MPN: 51346
- UPC: 754473513467
- PPN: BRD-51346
- UNSPSC: 46171501
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$175.80/ EA
Description
Nylon Padlocks from Brady® have nonconductive fiberglass-reinforced nylon bodies and unique key cylinders that prevent electricity from traveling from the shackle to the key.
Features
- Padlocks feature lightweight, nonconductive fiberglass-reinforced nylon bodies, hardened steel shackles and tamper-resistant 6-pin cylinders
- These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical and corrosion resistance

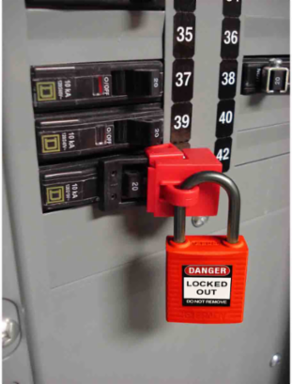

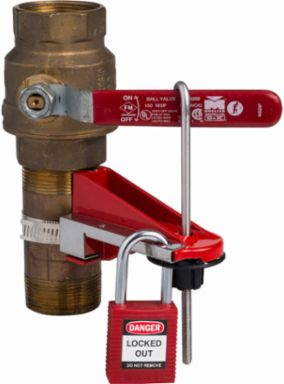

- Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications
- Each padlock is keyed differently with keys precision-machined to exacting standards, so that the key for one lock will not open another in the set
Specifications
Specifications
- Applications
- Food and Beverage Process Labeling; Hazard Communication Identification; Lockout Tagout
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Includes
- (6) English Labels; (6) French Labels; (6) Keys; (6) Padlocks; (6) Spanish Labels
- Key Option
- Keyed Different
- Key-Retaining
- Yes
- Language
- English; French; Spanish
- Maximum Number of Different Keycodes
- 15000
- Number of Labels Included
- 18
- Primary Noun, Basic Function
- Padlock
- Shackle Coating/Finish
- Triple-Coated, Hardened
- Text Legend
- DANGER LOCKED OUT DO NOT REMOVE
- Brady Material Number
- LOTO-8
- Material
- Rugged reinforced nylon body with steel shackle
- Padlock Body Material
- Nylon
- Shackle Material
- Steel
- Body Depth (mm/cm/m)
- 20.3 mm
- Body Height (mm/cm/m)
- 44.5 mm
- Body Size (mm/cm/m)
- 44.5 mm H x 38.1 mm W x 20.3 mm D
- Body Width (mm/cm/m)
- 38.1 mm
- Dimensions (Metric)
- 38.50 mm W x 86.50 mm H x 19.50 mm D
- Maximum Service Temperature °C
- 120 °C
- Minimum Service Temperature °C
- -20 °C
- Shackle Diameter
- 0.25 in
- Shackle Horizontal Clearance
- 0.8 in
- Shackle Vertical Clearance
- 1.5 in
- Shackle Width (mm)
- 33.00 mm
- Size - Width (mm)
- 38.50 mm
Body Coating/FinishReinforced Fiberglass
ColorYellow
EngravingYes
Key MechanismStandard Pin Tumbler
Key PossibilitesKA (Keyed Alike); MK (Master Keyed); GMK (Grand Master Keyed); Custom Key Charting
Labels SuppliedYes
Manufacturer NameBrady®
Number of Keys Included6
Number of Pin Tumblers6
Reverse LegendPROPERTY OF - PROPRIETE DE
Shackle TypeOpen Shackle
Total Qty per Pack6 Piece(s) / Box
ConductiveNo
Material PropertiesAnti-spark; Lightweight; Non-conductive
SAP B-NumberLOTO-8
Body Depth (in/ft/yd)0.8 in
Body Height (in/ft/yd)1.75 in
Body Size (in/ft/yd)1.75 in H x 1.5 in W x 0.8 in D
Body Width (in/ft/yd)1.5 in
Depth (mm/cm/m)19.50 mm
Height (mm/cm/m)86.50 mm
Maximum Service Temperature °F250 °F
Minimum Service Temperature °F0 °F
Shackle Diameter (mm)6.50 mm
Shackle Horizontal Clearance (Metric)20.00 mm
Shackle Vertical Clearance (Metric)38.00 mm
Size - W x H x D (mm)38.50 x 86.50 x 19.50
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer and Reproductive Harm
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer and Reproductive Harm ChemicalLead
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
