Brady 123326 Nylon Padlock with 6-Pin Cylinder, 1.5 Inch Shackle Clearance, Non-Conductive Nylon
Brady 123326 Nylon Padlock with 6-Pin Cylinder, 1.5 Inch Shackle Clearance, Non-Conductive Nylon
- MPN: 123326
- UPC: 754473720896
- PPN: BRD-123326
- UNSPSC: 46171501
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$30.79/ EA
Description

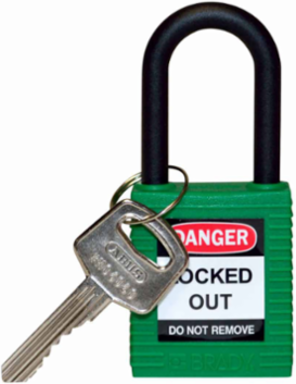

Nylon Padlocks from Brady® have nonconductive fiberglass-reinforced nylon bodies and unique key cylinders that prevent electricity from traveling from the shackle to the key.
Features

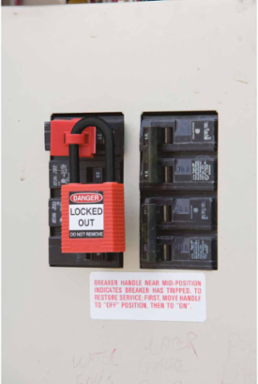

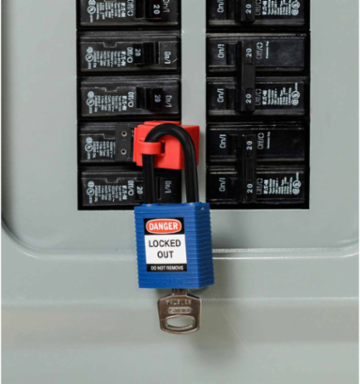

- Padlock features a non-conductive nylon shackle to protect against electrical hazards during lockout applications
- These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical and corrosion resistance
- Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications
- Reserved, paracentric keyway provides optimal security and the special design prevents the key from being released until the padlock shackle is closed
Specifications
Specifications
- Applications
- Electrical Labeling; Lockout Tagout
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Key Mechanism
- Standard Pin Tumbler
- Key-Retaining
- Yes
- Manufacturer Name
- Brady®
- Number of Keys Included
- 1
- Number of Pin Tumblers
- 6
- Shackle Coating/Finish
- Non-Conductive Nylon
- Text Legend
- DANGER LOCKED OUT DO NOT REMOVE
- Padlock Body Material
- Nylon
- Body Depth (in/ft/yd)
- 0.8 in
- Body Height (in/ft/yd)
- 1.75 in
- Body Size (in/ft/yd)
- 1.75 in H x 1.5 in W x 0.8 in D
- Body Width (in/ft/yd)
- 1.5 in
- Maximum Service Temperature °C
- 121.1 °C
- Minimum Service Temperature °C
- -17.8 °C
- Shackle Diameter
- 0.25 in
- Shackle Vertical Clearance
- 1.5 in
Body Coating/FinishReinforced Fiberglass
ColorGreen
Includes(1) English Label; (1) French Label; (1) Key; (1) Padlock; (1) Spanish Label
Key OptionKeyed Different
LanguageEnglish; French; Spanish
Maximum Number of Different Keycodes15000
Number of Labels Included3
Primary Noun, Basic FunctionPadlock
Shackle TypeOpen Shackle
Material PropertiesAnti-spark; Lightweight; Non-conductive
Shackle MaterialNylon
Body Depth (mm/cm/m)20.3 mm
Body Height (mm/cm/m)44.5 mm
Body Size (mm/cm/m)44.5 mm H x 38.1 mm W x 20.3 mm D
Body Width (mm/cm/m)38.1 mm
Maximum Service Temperature °F250 °F
Minimum Service Temperature °F0 °F
Shackle Horizontal Clearance0.8 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer and Reproductive Harm
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer and Reproductive Harm ChemicalLead
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
