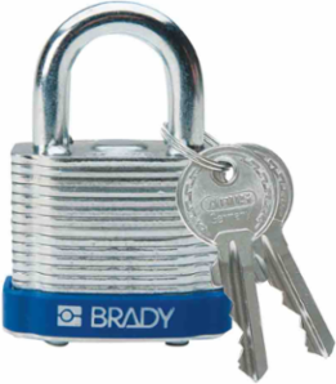

Brady 99504 Steel Padlock - 5-Pin Cylinder, 1.4 Inch Height, 0.75 Inch Vertical Clearance
- MPN: 99504
- UPC: 754473995041
- PPN: BRD-99504
- UNSPSC: 46171501
CAD
$23.19
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These laminated steel padlocks are made of reinforced laminated steel that withstands severe physical abuse while the hardened steel shackle resists tampering.
Features
- Body plates are individually coated for superior rust protection
- 5-pin cylinder offers more unique key cuts for better tamper resistance
- Each padlock includes 2 keys
- Each padlock is keyed differently with keys precision machined to exacting standards, meaning that the key for one lock should not open another
Documentation & Downloads
Specifications
Key Specifications
| Applications | Lockout Tagout; Security Identification |
|---|---|
| Brand Name | Brady® |
| Enables Industry Compliance | OSHA 1910.147 |
| Key Mechanism | Standard Pin Tumbler |
| Key-Retaining | No |
| Maximum Number of Different Keycodes | 15000 |
| Number of Labels Included | 0 |
| Padlock Body Type | Standard |
| Shackle Coating/Finish | Triple-Coated, Hardened |
| Brady Material Number | LOTO-12 |
| Padlock Body Material | Steel |
| Shackle Material | Steel |
| Body Depth (mm/cm/m) | 25.4 mm |
| Body Height (mm/cm/m) | 35.6 mm |
| Body Size (mm/cm/m) | 35.6 mm H x 27.9 mm W x 25.4 mm D |
| Body Width (mm/cm/m) | 27.9 mm |
| Maximum Service Temperature °F | 210 °F |
| Minimum Service Temperature °F | -70 °F |
| Shackle Horizontal Clearance | 0.8 in |
| Body Coating/Finish | Individually Coated Laminates |
|---|---|
| Color | Blue |
| Includes | (1) Padlock; (2) Keys |
| Key Option | Keyed Different |
| Manufacturer Name | Brady® |
| Number of Keys Included | 2 |
| Number of Pin Tumblers | 5 |
| Primary Noun, Basic Function | Padlock |
| Shackle Type | Open Shackle |
| Material Properties | Corrosion-resistant; Heavy-duty; Rust Protection |
| SAP B-Number | LOTO-12 |
| Body Depth (in/ft/yd) | 1 in |
| Body Height (in/ft/yd) | 1.4 in |
| Body Size (in/ft/yd) | 1.4 in H x 1.1 in W x 1 in D |
| Body Width (in/ft/yd) | 1.1 in |
| Maximum Service Temperature °C | 98.9 °C |
| Minimum Service Temperature °C | -56.7 °C |
| Shackle Diameter | 0.25 in |
| Shackle Vertical Clearance | 0.75 in |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer and Reproductive Harm |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| Contains 3TG Mineral | No-Does Not Contain |
| CA Prop 65 Label Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer and Reproductive Harm Chemical | Lead |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
