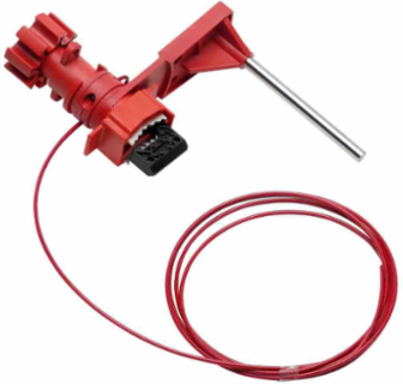

Brady 51394 Universal Valve Lockout Device, 5.6 Inch Height, 2.44 m Length, Rugged Steel & Nylon Construction
- MPN: 51394
- UPC: 754473513948
- PPN: BRD-51394
- UNSPSC: 39121909
CAD
$101.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

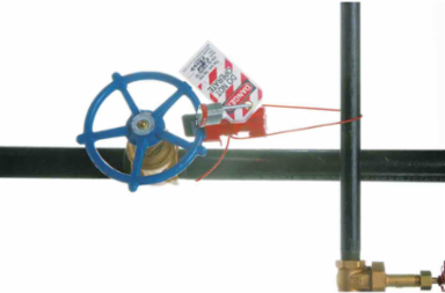

Lock out all types of valves with a single universal device! The universal valve lockout system from Brady® is rugged, easy to use and replaces the need for multiple devices.
Features
- Made of rugged industrial-grade steel and nylon for extra impact and chemical resistance

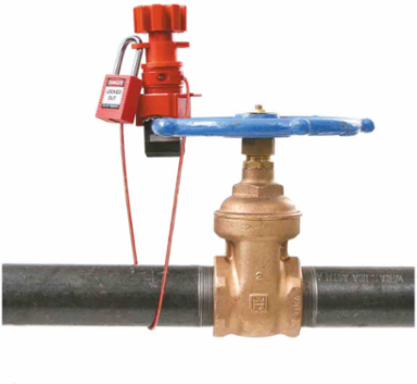

- Versatile open-ended clamp fits over most closed rings and wide handles
- Device can also lock out large levers, T handles and other hard-to-secure mechanical devices

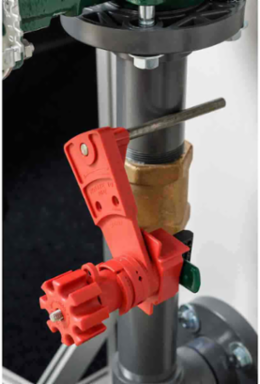

- Blocking arm (included) locks out quarter-turn ball values;add a second optional blocking arm (sold separately) to lock out 3-, 4- or 5-way valves
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Red
- Country
- EMEA
- Maximum Number of Padlocks
- 2
- Risk Type
- Mechanical Risk
- Total Qty per Pack
- 1 Piece(s) / Pack
- Base Clamping Unit Material
- Fiberglass Reinforced Nylon
- Brady Material Number
- LOTO-24
- Material
- Brass; Fiberglass Reinforced Nylon; Stainless Steel
- Base Clamping Unit Height (in/ft/yd)
- 5.6 in
- Blocking Arm Height (in/ft/yd)
- 6.05 in
- Blocking Arm Width (in/ft/yd)
- 6.2 in
- Cable Diameter (in/ft/yd)
- 0.125 in
- Cable Length (in/ft/yd)
- 8 ft
- Dimensions (Metric)
- 157.50 mm W x 142.20 mm H x 2.44 m L
- Maximum Handle Thickness (in/ft/yd)
- 0.6 in
- Maximum Handle Width (in/ft/yd)
- 1 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Shackle Diameter (mm/cm/m)
- 9.91 mm
- Minimum Service Temperature °C
- -20 °C
- Minimum Wire Diameter (mm/cm/m)
- 3.25 mm
- Size - Width (mm)
- 157.50 mm
BrandedYes
Component TypeCable Attachment
Enables Industry ComplianceOSHA 1910.147
Primary Noun, Basic FunctionLockout Device
Steel TypeIndustrial-Grade
Adhesive (Y/N)No
Blocking Arm MaterialFiberglass Reinforced Nylon
Cable MaterialMetal
SAP B-NumberLOTO-24
Base Clamping Unit Height (mm/cm/m)142.2 mm
Blocking Arm Height (mm/cm/m)153.7 mm
Blocking Arm Width (mm/cm/m)157.5 mm
Cable Diameter (mm/cm/m)3.18 mm
Cable Length (mm/cm/m)2.44 m
Height (mm/cm/m)142.20 mm
Maximum Handle Thickness (mm/cm/m)15.24 mm
Maximum Handle Width (mm/cm/m)25.40 mm
Maximum Shackle Diameter (in/ft/yd)0.39 in
Maximum Wire Diameter (mm/cm/m)3.25 mm
Minimum Shackle Clearance - (mm/cm/m)20.00 mm
Size - Length (m)2.44 m
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
