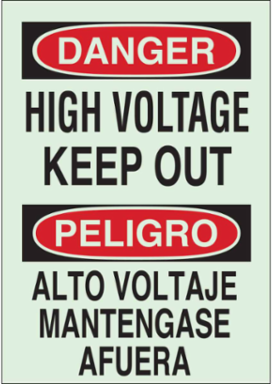

Brady 90658 BradyGlo Glow-In-The-Dark Bilingual DANGER Sign, 10 Inch H x 7 Inch W, Photoluminescent
Brady 90658 BradyGlo Glow-In-The-Dark Bilingual DANGER Sign, 10 Inch H x 7 Inch W, Photoluminescent
- MPN: 90658
- UPC: 754473906580
- PPN: BRD-90658
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$50.92/ EA
Description
BradyGlo™ Glow-In-The-Dark Plastic (B-347) features high performance photoluminescence material that is 100% reliable and virtually maintenance free.
Features
- Compliant to NFPA Life Safety Code 101 and 2015 IBC/IFC Regulation, OSHA 1910.37, NYC and current building codes
- Energy efficient, non-electric, nontoxic, non-radioactive and may qualify for LEED credits
- 50 ft. visibility allows for maximum effectiveness in low light or dark environments
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Red on Glow
- Finish
- Gloss
- Image or Text
- Text Only
- Meets Industry Standards - Signs
- ANSI Z53.1-1967
- Number of Printed Sides
- 1
- PSPA Photoluminescence Class
- Class A
- Shape
- Rectangle
- Trade Name
- BradyGlo™
- Illumination
- Glow in the Dark
- Material
- Phosphorescent Polyester Laminated Polystyrene
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.063 in
- Dimensions
- 10 in H x 7 in W x 0.063 in D
- Dimensions 2
- 10 in H x 7 in W
- Height (mm/cm/m)
- 25.4 cm
- Maximum Service Temperature °F
- 158 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 10 in x 7 in
- Thickness (mm/cm/m)
- 1.6 mm
- Width (mm/cm/m)
- 177.8 mm
Calculated Sign ShapeVertical Rectangle
Enables Industry ComplianceANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
HeaderDANGER/PELIGRO
LanguageEnglish; Spanish
Mounting TypeCorner Holes
Primary Noun, Basic FunctionSign
Reflective TypeNon-Reflective
Text LegendHIGH VOLTAGE KEEP OUT/ALTO VOLTAJE NO ACERCARSE
Brady Material NumberB-347
LaminatedLaminated
Material PropertiesPhotoluminescent; Rigid
SAP B-NumberB-347
Depth (mm/cm/m)1.6 mm
Dimensions (Metric)25.4 cm H x 1.6 mm D
Height (in/ft/yd)10 in
Maximum Service Temperature °C70 °C
Minimum Service Temperature °C-40 °C
Sign Size10 in H x 7 in W x 0.063 in D
Thickness (in/ft/yd)0.063 in
Width (in/ft/yd)7 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
