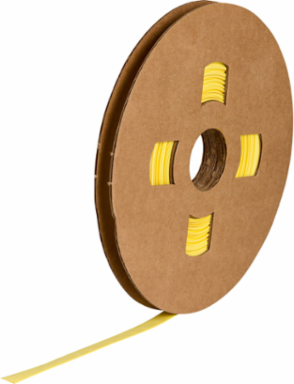

Brady LSZH-C-250-YL Low Smoke Zero Halogen Heat Shrink Tubing 0.25 Inch Dia x 75 Ft L, Yellow
- MPN: LSZH-C-250-YL
- UPC: 662820998198
- PPN: BRD-LSZH-C-250-YL
- UNSPSC: 55121612
CAD
$167.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Ribbon Series
- R6600
- Shrink Ratio
- 2:1
- Total Qty per Pack
- 1 Roll(s) / Roll
- Adhesive (Y/N)
- No
- Continuous & Die-Cut Materials Supported
- Continuous Tapes Only
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Self-Extinguishing; Smear-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.25 in
- Dimensions
- 0.439 in H
- Dimensions 2
- 0.439 in H
- Height (mm/cm/m)
- 11.2 mm
- Maximum Service Temperature °F
- 221 °F
- Maximum Wire Diameter (mm/cm/m)
- 5.46 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.125 in
- Minimum Wire Gauge
- 12 AWG
- Recovered Diameter (mm/cm/m)
- 3.2 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.74 mm
- Roll Length (mm/cm/m)
- 22.86 m
- Size - Width (mm)
- 11.15 mm
- Sleeve Size (mm/cm/m)
- 6.4 mm Dia x 22.86 m L
- Wire Gauge Range
- 12 AWG to 8 AWG
Brand NameBrady®
Enables Industry ComplianceBS6853 (1999) Vehicle Category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Method 215K; MIL-STD-202G; RoHS Compliant
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Printer CompatibilityBBP72
Recommended RibbonR6406
ShapeContinuous
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Trade NamePermaSleeve®
Brady Material NumberB-7641
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-NumberB-7641
Diameter as Supplied (mm/cm/m)6.4 mm
Dimensions (Metric)11.15 mm W x 11.2 mm H x 22.86 m L
Height (in/ft/yd)0.439 in
Maximum Service Temperature °C105 °C
Maximum Wire Diameter (in/ft/yd)0.215 in
Maximum Wire Gauge8 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)3.18 mm
Recovered Diameter (in/ft/yd)0.125 in
Recovered Wall Thickness (in/ft/yd)0.029 in
Roll Length (in/ft/yd)75 ft
Size - Length (m)22.86 m
Sleeve Size (in/ft/yd)0.25 in Dia x 75 ft L
Wire Diameter Range0.125 in to 0.215 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
