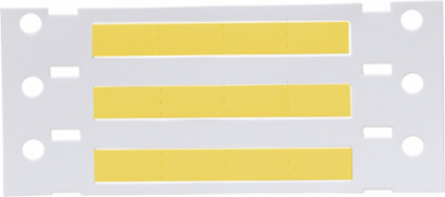

Brady LSZH-125-2-YL-4 PermaSleeve Heat Shrink Tubing, 0.125 Inch Dia, 10000 Sleeve Roll, Yellow
Brady LSZH-125-2-YL-4 PermaSleeve Heat Shrink Tubing, 0.125 Inch Dia, 10000 Sleeve Roll, Yellow
- MPN: LSZH-125-2-YL-4
- UPC: 754473943455
- PPN: BRD-LSZH-125-2-YL-4
- UNSPSC: 39131502
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2556.31/ EA
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6007; R6007
- Shape
- Rectangle
- Sleeve Slits
- Yes
- Suggested Ribbon Series
- R6000 Halogen Free; R6600
- Total Quantity
- 10000
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- SAP B-Number
- B-7641
- Diameter as Supplied (in/ft/yd)
- 0.125 in
- Dimensions
- 0.235 in H
- Dimensions 2
- 0.235 in H
- Height (mm/cm/m)
- 6.00 mm
- Maximum Service Temperature °F
- 221 °F
- Maximum Wire Diameter (mm/cm/m)
- 2.79 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.062 in
- Minimum Wire Gauge
- 20 AWG
- Recovered Diameter (mm/cm/m)
- 1.6 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.64 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.125 in Dia x 0.5 in W
- Sleeve Width (in/ft/yd)
- 0.5 in
- Vertical Repeat
- 0.5 in
- Web Width (in/ft/yd)
- 3.49 in
- Wire Diameter Range
- 0.062 in to 0.11 in
Brand NameBrady®
Enables Industry ComplianceASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll2500
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; BBP72; i7100
Quantity per Row4
Ribbon SeriesR6600
Shrink Ratio2:1
Software CompatibilityLabelMark, CodeSoft
Total Qty per Pack10000 Sleeve(s) / Roll
Trade NamePermaSleeve®
Brady Material NumberB-7641
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)3.2 mm
Dimensions (Metric)12.70 mm W x 6.00 mm H
Height (in/ft/yd)0.235 in
Maximum Service Temperature °C105 °C
Maximum Wire Diameter (in/ft/yd)0.11 in
Maximum Wire Gauge16 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)1.57 mm
Recovered Diameter (in/ft/yd)0.062 in
Recovered Wall Thickness (in/ft/yd)0.025 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)12.70 mm
Sleeve Size (mm/cm/m)3.2 mm Dia x 12.7 mm W
Sleeve Width (mm/cm/m)12.7 mm
Vertical Repeat (mm)12.70 mm
Web Width (mm/cm/m)88.65 mm
Wire Gauge Range20 AWG to 16 AWG
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
