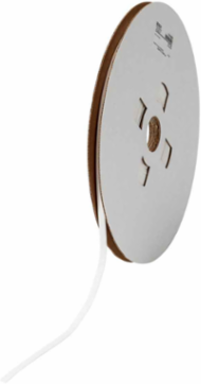

Brady LSZH-C-187-WT-J PermaSleeve Low Smoke Heat Shrink Tubing, 0.187 Inch Dia x 175 ft, White
- MPN: LSZH-C-187-WT-J
- UPC: 662820998082
- PPN: BRD-LSZH-C-187-WT-J
- UNSPSC: 55121612
CAD
$400.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer printing and is ideal for use in wire identification.
Features
- Suitable for use in applications that require low smoke, halogen free, flame retardant markers
Documentation & Downloads
Specifications
Key Specifications
| Applications | Wire and Cable Labeling |
|---|---|
| Color | White |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | BBP72 |
| Ribbon Series | R6600 |
| Shrink Ratio | 2:1 |
| Total Qty per Pack | 1 Roll(s) / Roll |
| Adhesive (Y/N) | No |
| Continuous & Die-Cut Materials Supported | Continuous Tapes Only |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Self-Extinguishing; Smear-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.187 in |
| Dimensions | 0.335 in H |
| Dimensions 2 | 0.335 in H |
| Height (mm/cm/m) | 8.5 mm |
| Maximum Service Temperature °F | 221 °F |
| Maximum Wire Diameter (mm/cm/m) | 3.81 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.094 in |
| Minimum Wire Gauge | 16 AWG |
| Recovered Diameter (mm/cm/m) | 2.4 mm |
| Recovered Wall Thickness (mm/cm/m) | 0.64 mm |
| Roll Length (mm/cm/m) | 53.34 m |
| Size - Width (mm) | 8.51 mm |
| Sleeve Size (mm/cm/m) | 4.8 mm Dia x 53.34 m L |
| Wire Gauge Range | 16 AWG to 10 AWG |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | BS6853 (1999) Vehicle Category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Method 215K; MIL-STD-202G; RoHS Compliant |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | BBP72 |
| Recommended Ribbon | R6406 |
| Shape | Continuous |
| Suggested Ribbon Series | R6000 Halogen Free; R6600 |
| Trade Name | PermaSleeve® |
| Brady Material Number | B-7641 |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen |
| SAP B-Number | B-7641 |
| Diameter as Supplied (mm/cm/m) | 4.8 mm |
| Dimensions (Metric) | 8.51 mm W x 8.5 mm H x 53.34 m L |
| Height (in/ft/yd) | 0.335 in |
| Maximum Service Temperature °C | 105 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.15 in |
| Maximum Wire Gauge | 10 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 2.39 mm |
| Recovered Diameter (in/ft/yd) | 0.094 in |
| Recovered Wall Thickness (in/ft/yd) | 0.025 in |
| Roll Length (in/ft/yd) | 175 ft |
| Size - Length (m) | 53.34 m |
| Sleeve Size (in/ft/yd) | 0.187 in Dia x 175 ft L |
| Wire Diameter Range | 0.094 in to 0.15 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
