Documentation & Downloads

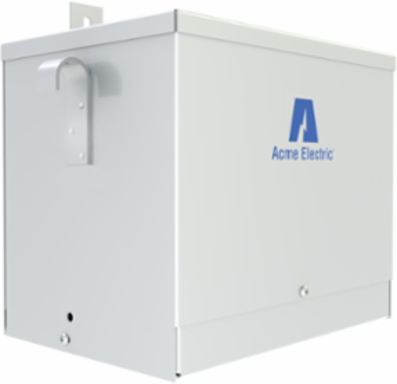

Acme Electric A3009K0310B Buck-Boost Transformer 9kVA, 220/230/240V, Wall Mount, 75 lb.
- MPN: A3009K0310B
- UPC: 047503092385
- PPN: HBL-A3009K0310B
- UNSPSC: 39121015
CAD
$2003.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Buck-Boost Transformer - Three Phase, 220/230/240 - 208V, 9kVA
Features
- Copper terminations for trouble free operation
- Lower cost solution
- 5-10 times increase in kVA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 7.47 in x 12.37 in x 10.38 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Category
- Buck-Boost Transformer
- Secondary Voltage
- 208 V
- Height
- 10.38 in
- Mounting
- Wall
- UL Insulation Class
- 180°C
- Weight
- 75 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503092385
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
CSA StandardC22.2 No 47
kVA9.0
Primary Voltage220/230/240 V
Product TypeBuck-Boost Transformer
Frequency Rating60 Hz
Length7.47 in
Width12.37 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Sub Class CodeD10D170
ConstructionEncapsulated
BOX SIZE14.000x12.000x13.000 (in)
Pallet Height20.000 in
Pallet Weight563.000 lb.
NAICS Code335311
