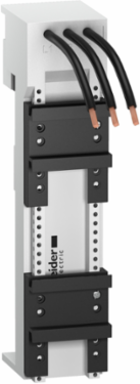

Schneider Electric LA9ZA32434 Mounting plate, Linergy BZ, 32A, 3P, 45 x 200mm, 1 way, for GV2 LE, GV2 P, GV2 ME+LC1D, Grey
- MPN: LA9ZA32434
- PPN: SCH-LA9ZA32434
CAD
$229.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy busbar systems adaptors for TeSys U LUB12 and TeSys U LUB32. It applied to 6 mm² cable cross section and 1x3 Poles. The rated insulation voltage is 690V. The permissible current is 32A. It has grey surface treatment. It is compatible with LC1D, GV2LE, GV2ME,GV2P for Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, TeSys-GV2, TeSys-D. Sold in lots of 4 units. IP20 conforming to IEC 60529. It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Depth63 mm
Physical Attributes
- Color
- Gray
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Busbar Pitch
- 60 mm
- Device Short Name
- LA9Z
- Number Of Poles
- 3P
- Permissible Current
- 32 A
- Product Name
- BZ
- Quantity Per Set
- set of 4
- Range Of Product
- TeSys
- Sustainable Packaging
- Yes
- Height Nominal
- 200 mm
- [Ui] Rated Insulation Voltage
- 690 V
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-07-28
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2526
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Cross Section6-6 mm² - 10 AWG
Energy Efficiency OptimizedFalse
Number Of Ways1 way
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemounting plate
RangeLinergy
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal45 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)267.000 g
Take-backNo
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Product CompatibilityGV2LE, GV2P, LC1D, GV2ME
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- mounting plate
Range Of ProductTeSys
ETIM
- ETIM 8
- EC002270
ETIM 9EC002270
