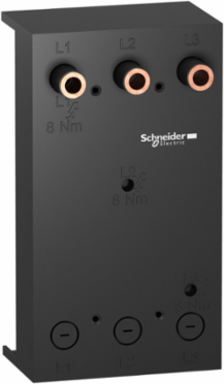

Schneider Electric LV429372 Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis
- MPN: LV429372
- PPN: SCH-LV429372
- UNSPSC: 31162307
CAD
$974.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The NSX mounting plate system for busbar simplifies the installation of NSX 100-250 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.
Features
- For ComPacT NSX Circuit Breakers
- Mounting plate for 3P ComPacT NSX circuit breakers
- Rated operational current at 40 deg (Ie) 100-250 A
- With size dimensions (104 x 190 x 63) mm
- Set of 1
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|
| Depth | 63 mm |
|---|
Physical Attributes
| Color | anthracite grey |
|---|
Complementary Attributes
| Ui Rated Insulation Voltage | 690 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Permissible Current | 200 A 12 x 5 mm250 A 15 x 5 mm, 250 A 20 x 5 mm, 250 A 25 x 5 mm, 250 A 30 x 5 mm, 250 A 12 x 10 mm, 250 A 20 x 10 mm, 250 A 30 x 10 mm |
| Range Of Product | PowerPact multistandard, TeSys |
| Local Publishable Date | 2026-06-27 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2526 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA9Z |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | adaptors for busbar systems |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 104 mm |
| Customs Code | 8536908585 |
| Silicone Free | Yes |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Poles Description | 3P |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Busbar Pitch | 60 mm |
| Energy Efficiency Optimized | False |
| Number Of Ways | 1 way |
| Product Name | Linergy BW |
| Range | Linergy |
| Sustainable Packaging | No |
| Height Nominal | 190 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | GV7, PowerPact NJ, NSX100...250 |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Without Single Use Plastic | No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards |
General Attributes
| Range Of Product | PowerPact multistandard, TeSys |
|---|
| Product Or Component Type | adaptors for busbar systems |
|---|
ETIM
| ETIM 8 | EC001531 |
|---|---|
| ETIM 10 | EC001531 |
| ETIM 9 | EC001531 |
|---|
