Weidmuller 1081720000 BVF 7.62HP/03/180MF3 BCF/06R SN BK BX

MPN: 1081720000
PPN: WDM-1081720000

$10.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

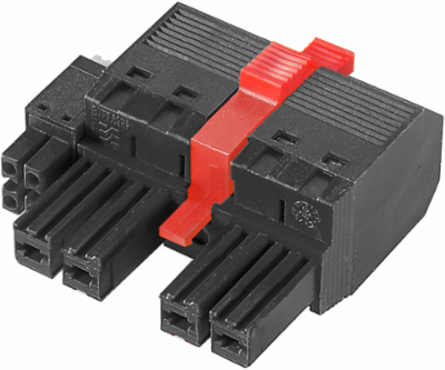

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 3, 180°, PUSH IN, Clamping range, max. : 10 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group C / UL 1059)	35 A
Wire cross-section, AWG, min.	AWG 24
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group C / UL 1059)	600 V
Rated current (Use group B / UL 1059)	35 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, max.	AWG 8

Approvals

Approvals	CSA, cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Net weight	22 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

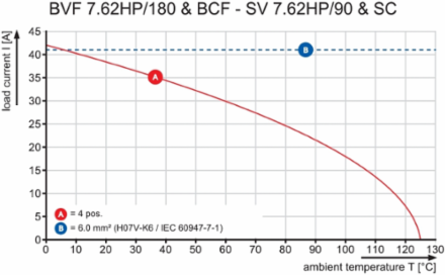

Rated current, max. number of poles (Tu=20°C)	38 A
Rated current, max. number of poles (Tu=40°C)	34 A
Rated voltage for surge voltage class / pollution degree III/2	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV
Clearance, min.	10.4 mm

Rated current, min. number of poles (Tu=20°C)	38 A
Rated current, min. number of poles (Tu=40°C)	34 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	800 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Short-time withstand current resistance	3 x 1s with 420 A
Creepage distance, min.	12.7 mm

Material Data

Insulating material	PA GF
Material of operational elements	PPA GF
Insulating material group	II
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	125 °C
Temperature range, installation, max.	125 °C

Colour	black
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 500
UL 94 flammability rating	V-0
Contact material	Copper alloy
Layer structure of plug contact	6-8 µm Sn glossy
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002638
eClass 9.0	27-44-03-09
eClass 10.0	27-44-03-09

ETIM 7.0	EC002638
eClass 9.1	27-44-03-09

Conductors That Can Be Connected - Hybrid

Clamping range, rated connection (Power)	0.5...10 mm²
Connector cross-section (Power)	AWG 24...AWG 8
solid, H05(07) V-U (Power)	0.5...10 mm²
flexible, H05(07) V-K (Power)	0.5...6 mm²
with wire-end ferrule with collar (Power)	0.5...6 mm²
with wire-end ferrule according to DIN 46 228/1 (Power)	0.5...6 mm²

Clamping range, rated connection (Signal)	0.2...1.5 mm²
Connector cross-section AWG (Signal)	AWG 26...AWG 16
solid, H05(07) V-U (Signal)	0.14...1.5 mm²
flexible, H05(07) V-K (Signal)	0.14...1.5 mm²
with wire-end ferrule with collar, DIN 46 228/4 (Signal)	0.25...1.5 mm²
with wire-end ferrule according to DIN 46 228/1 (Signal)	0.25...1.5 mm²

System Parameters

Product family	OMNIMATE Power - series BV/SV 7.62HP
Wire connection method	PUSH IN
Pitch in inches (P)	0.3 inch
Number of poles	3

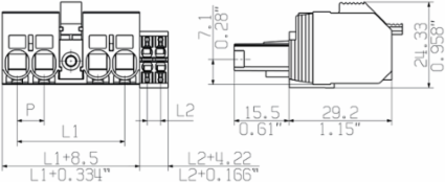

L1 in inches	0.9 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Volume resistance	4.50 mΩ
Stripping length	12 mm
Plugging cycles	25
Pulling force/pole, max.	15 N

Type of connection	Field connection
Pitch in mm (P)	7.62 mm
Conductor outlet direction	180°
L1 in mm	22.86 mm
Number of rows	1
Rated cross-section	6 mm²
Touch-safe protection acc. to DIN VDE 0470	IP 20
Can be coded	Yes
Screwdriver blade	0.6 x 3.5
Plugging force/pole, max.	17 N

Packing

Packaging	Box
VPE width	0 m

VPE length	0 m
VPE height	0 m

Technical Data - Hybrid

stripping length (Signal)	8 mm
Pitch in inches (Signal)	0.15 inch
L2 in mm	7.62 mm
Number of rows (Signal)	2
Contact surface (Signal)	tinned
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)	320 V
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)	4 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)	4 kV
Rated voltage (Use group B / CSA) (Signal)	300 V
Rated voltage (Use group D / CSA) (Signal)	300 V
Rated current (Use group C / CSA) (Signal)	9 A
Wire connection cross-section AWG (Signal)	AWG 26...AWG 16
Rated voltage (Use group C / UL 1059] (Signal)	50 V
Rated current (Use group B / UL 1059) (Signal)	5 A
Rated current (Use group D / UL 1059) (Signal)	5 A

Pitch in mm (Signal)	3.81 mm
Number of poles (Signal)	6
L2 in inch	0.3 inch
Contact material (Signal)	CuMg
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)	400 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)	200 V
Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal)	4 kV
Short-time withstand current resistance (Signal)	3 x 1s with 80 A
Rated voltage (Use group C / CSA) (Signal)	50 V
Rated current (Use group B / CSA) (Signal)	9 A
Rated current (Use group D / CSA) (Signal)	9 A
Rated voltage (Use group B / UL 1059] (Signal)	300 V
Rated voltage (Use group D / UL 1059] (Signal)	300 V
Rated current (Use group C / UL 1059) (Signal)	5 A
Connector cross-section (Signal)	AWG 26...AWG 16

Notes

Technical specifications refer to the power contacts Technical data of signal contacts: 50V / 5A, stripping length 8mm Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.5 mm²
Solid, min. H05(07) V-U	0.5 mm²
Stranded, max. H07V-R	10 mm²
Flexible, max. H05(07) V-K	10 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	6 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	10 mm²

Clamping range, max.	10 mm²
Solid, max. H05(07) V-U	10 mm²
Flexible, min. H05(07) V-K	0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	1.5 mm²
Max. clamping range	10 mm²

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group C / CSA)	33 A
Wire cross-section, AWG, min.	AWG 24
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (CSA)	200039-1121690
Rated voltage (Use group C / CSA)	600 V
Rated current (Use group B / CSA)	33 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, max.	AWG 8
